Systemline is Europe’s leading designer/manufacturer of high
quality multi-room entertainment systems for the home.
Systemline have been manufacturing cutting edge multi-room
systems since 1987. Today they have 1000s of systems
installed across Europe and enjoy an enviable reputation for
outstanding performance and reliability.
We are a ‘Systemline Approved Installer’ having attended
comprehensive training courses and
are fully qualified to help you design and perfectly install
Systemline Modular into your home.
|
Page 2
( Displaying 10 of 46 Products )
|
|
|
Systemline Airway In-Ceiling Active Speaker System Pack
|
|
Stream music wirelessly from a mobile device to elegant on-wall speakers
AirWay On-walls are an extremely slim and elegant active loudspeaker solution for use with network wireless receiver devices like Apple AirPort* Built-in amplification and electronic equalisation mean that everything is taken care of. Connection is via a single UTP Cat5/6 cable witch conveys power, balanced line stereo audio and coms. This is connected to a Digital Input & Power Plate (DIPP) which is in turn connected to a power supply and in this example AirPort. The DIPP detects the presence of a digital signal and automatically switches the active speaker system on, and of course off again when there is no signal. A pre-set level control is also provided. Volume control comes from the Smart Mobile Device.
|
|

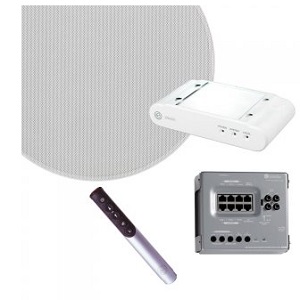

Systemline Airway Multizone Starter Pack
|
|
Description:-
AirWay MultiZone is designed for use with one of the popular Network Music Receivers (NMR) such as AirPort, Sonos Connect or a suitable DLNA* device Wireless control is via whatever app that is designed to work with the selected NMR, with individual zone control via an infra-red remote control or in-wall keypad.
* In 2003 Sony established a collaborative organisation called the Digital Living Network Alliance (DLNA) with a view to defining interoperability guidelines between IP connected devices. it is now claimed the there are over 18,000 certified DLNA devices in the marketplace. Importantly, DLNA is an open standard and is supported by a number of major companies including Cisco, Dolby, Google, Hewlett Packard, Intel, LG, Microsoft, Nokia, Panasonic & Samsung (note that Apple are conspicuous by their absence, but DLNA software will run on Apple devices).
|
|

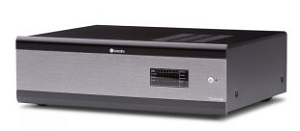

Systemline S6.2 Controller
|
|
Description:-
6 audio sources to up to 16 independent zones
This is our flagship home run wiring system product. Each Controller supports 6 inputs which can be switched to ether connect to centralled sources, or a remote audio which can be made it available to all other zones. Two units can be connected to service 16 zones. There is a vast array of control options, including simple hard button keypads, learning keypads and Touch Screen keypads. Wireless control can be from a choice of two machined from solid aluminium IR handsets, a propriatory Wireless Commander which combines touch screen control and hard button control and of course control by iDevices such as iPads and iPhones. 3rd party device control including HDMI matrix switches and lighting control etc is via 6 x RS232 ports.
|
|
Systemline SIB systemnet Interface Box
|
|
Designed for use where there is a requirement to control a zone via something like an iPad. The SIB fulfils a similar function to the SNB, but crucially incorporates an IR code storage bank for IR control of sources within the zone. This ONLY needs to be used in zones where no TSK35C is fitted. If there are no plans to use any TSK35C’s then one is required per zone.
Features
◾Dimensions (mm) (WxDxH) 102 x 48 x 81.5
|
|

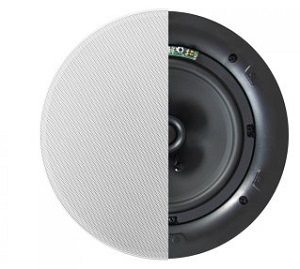

Systemline SM65C Circular Grille Speakers
|
|
These speakers are specially modified q install Qi56C so that they work with the Modular MCA to give IR receiver and LED status in the same way as the ALM3 speaker pair. One of the speakers contains the IR and LED electronics on the front and a RJ45 socket on the back which connects to the MCA.
Features
◾Dimensions round / square mm: 232 diameter / 232 x 232
◾Cutout: 203mm diameter
◾Depth: 79mm
|
|
Systemline Homenet Enclosures (Chassis)
|
|
Small Chassis:-
◾Supplied with 16 populated Cat5 ports
◾Capacity for expansion to 24 ports
◾Built in swing frame
◾Door and swing frame can be hinged from left or right
◾Mild steel with powder coated silver finish
◾Housing within frame for either:
◾ - AM8 multi-source hub or
◾ - HPM1 single source hub
◾Dimensions (WxHxD): 304 x 436 x 200mm
Medium Chassis
Supplied with 24 populated Cat5 ports
|
|

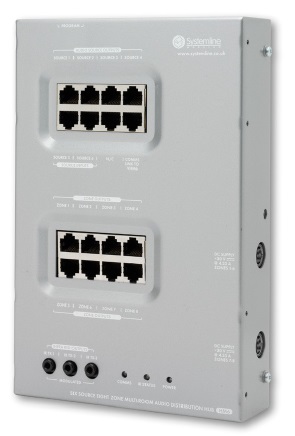

Systemline AM8 Multi-Source Hub
|
|
6 inputs 8 zonesThis is a 6 x 8 audio matrix switcher where multiple sources are connected
exclusively over usingCAT-5/6 cable using balanced line.8 zone outputs are provided via
RJ-45 sockets, which use CAT-5/6 cable to feed either active speakers or zone amplifiers
located in their respective rooms. This cable delivers power and balanced audio to the zones
together with a coms & IR bus.
Specification:
|
|
Systemline HM1 Single Source Hub
|
|
1 input 6 zone
The single central input can be accessed either directly through the phono sockets (the second pair provide loop through), or via an RJ-45 socket if the source is remotely located. The later is delivered using over balanced line over CAT5/6 cable.
6 zone outputs are provided via RJ-45 sockets, which use CAT-5/6 cable to feed either active speakers or zone amplifiers located in their respective rooms. This cable delivers power and balanced audio to the zones together with a coms & IR bus
|
|
Systemline DIM Digital Input Module
|
|
The Digital Input Module receives either digital optical or analogue audio inputs and
transmits them as balanced audio over Cat5/6 cable which then connects to either a local or
main system input. It also has one IR jack for control of the source.
Specification:-
• Dimensions (WxHxD) mm: 50 x 50 x 40
• Euro data compliant (will fit MK Euro 50x50 data slots)
• Requires standard single gang back box 44mm deep
|
|
