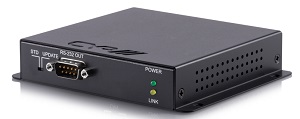

CYP PUV-1210PL-RX 60m HDBaseT™ LITE Receiver (4K, HDCP2.2, HDMI2.0, PoH)
The PU-1210PL-RX Receiver will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) up to 60m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 60m.
HDCP2.2 Compliant
High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD @ 24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports HDCP repeating and CEC functions
Supports 3D signals
Inputs:
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x 9pin Dsub [1x RS-232 Data]
POE PSU: PoH
Dimensions 116mm [W] x 106mm [D] x 27mm [H]
Net Weight 357g
Gross Weight 540g
