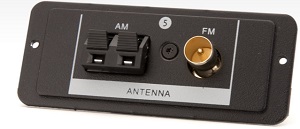

The latest tuner in Creek’s EVOLUTION 50 range is the AMBIT FM/AM Tuner module, suitable for adding to the EVOLUTION 50A or the forth coming EVOLUTION 100A amplifier. Plugging this tuner into the back panel of the amplifier upgrades the amp into a Receiver. Its Plug and Play nature also allows it to update the amp’s software to the latest revision automatically. Once the tuner is installed and the amp is switched-on, the display will show the amp having an extra input – A Tuner input, in fact. However, it will look to the user like a stand-alone tuner in the OLED display window.
Once installed, the four left hand buttons on the front panel, together with the left hand control knob and or remote control handset, will offer all the radio function controls.
Technical Specification:-
FM Frequency Range
76 – 108 MHz
AM Frequency Range
520 – 1710 kHz MW
Tuning Increments
FM: 50, 100 and 200 kHz
AM: 9 kHz or 10 kHz
Pre-set Stations
For FM/AM more than 100
Station Programming
Manual or Automatic
FM Sensitivity
-3.5 dBuV 26dB audio and max RF gain
Image Rejection
70dB
Adjacent Channel Rejection
65dB
Alternate channel rejection
70dB
Frequency Response (FM only)
30 Hz- 16 kHz -1dB
Total Harmonic Distortion
less than 0.05%
Stereo separation (FM only)
greater than 40dB
The AMBIT tuner receives the entire FM and AM frequency band and digitises it with two high quality ADCs. It then manages the signal using a Digital Signal processor and even separates the left and right channel information in FM. After this, using its own high quality DAC, it returns the digital signal to Audio, to be amplified by the EVOLUTION 50A.
The result is simply brilliant. FM signals have textbook operation, with none of the usual problems associated with analogue tuner performance. RDS stations will show their name and other information. AM performance is excellent also and can provide excellent performance just from the loop antenna provided, if there is a good indoor signal.
FM radio performance is limited only by the quality of the signal and of course the antenna used. Choose an external antenna for the best results.
Listen to your favourite stations like you have never heard them before.
