Small Chassis:-
◾Supplied with 16 populated Cat5 ports
◾Capacity for expansion to 24 ports
◾Built in swing frame
◾Door and swing frame can be hinged from left or right
◾Mild steel with powder coated silver finish
◾Housing within frame for either:
◾ - AM8 multi-source hub or
◾ - HPM1 single source hub
◾Dimensions (WxHxD): 304 x 436 x 200mm

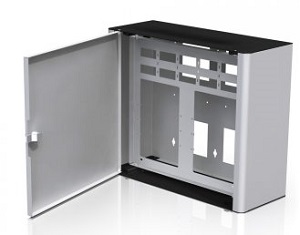

Medium Chassis
Supplied with 24 populated Cat5 ports
• Capacity for expansion to 40 ports
• Built in swing frame
• Door and swing frame can be hinged from left or right
• Mild steel with powder coated white finish
• Housing within frame for either:
- AM8 Multi-source hub and SNH8
- Systemnet hub or
- Combination of AM8 and VM8 video hub
• Dimensions (WxHxD): 515 x 436 x 200mm

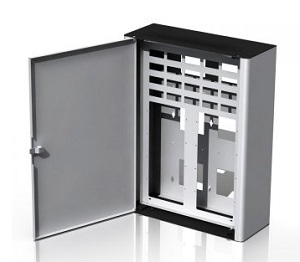

Large Chassis
◾Supplied with 24 populated Cat5 ports
◾Capacity for 60 ports
◾Built in swing frame
◾Door and swing frame can be hinged from left or right
◾Mild steel with powder coated white finish
◾Housing within frame for full complement of hubs:
◾- AM8 Multi-source hub, SNH8 SystemNet hub
◾- and VM8 Video hub
◾Dimensions (WxHxD): 515 x 676 x 200mm
