The PU-514L-RX is a Receiver Unit designed to be used with PU-514L-TX Transmitter, and any compatible HDBaseT™ Matrix or Distribution Amplifier. It allows uncompressed HDMI, and 2-way IR signals to be received via a Single CAT5e/6/7 cable to distances of up to 60m. Utilise the USB power output from a TV as an optional way of powering the PU-514L-RX receiver unit alternative to a mains power supply.
Specification:
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
•Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
•Complies with HDBaseT™- Lite specifications
•Full HD resolution support (1080p @ 60Hz/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
•Supports HDMI output up to 15m with 8/12-bit deep colour
•Supports 2-way IR Control
•Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
•Choose to power the PU-514L-RX via the USB output from a TV (Cable available separately - APC-USB) : * Please note the performance and consistency of USB power outputs from TV's can vary and cannot be guaranteed by CYP.
Inputs: 1x RJ45 [1x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

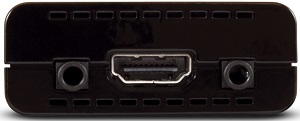

Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU: 5V/2.6A
Dimensions: 55mm [W] x 52mm [D] x 22mm [H]
Net Weight: 60g
Gross Weight: 140g
