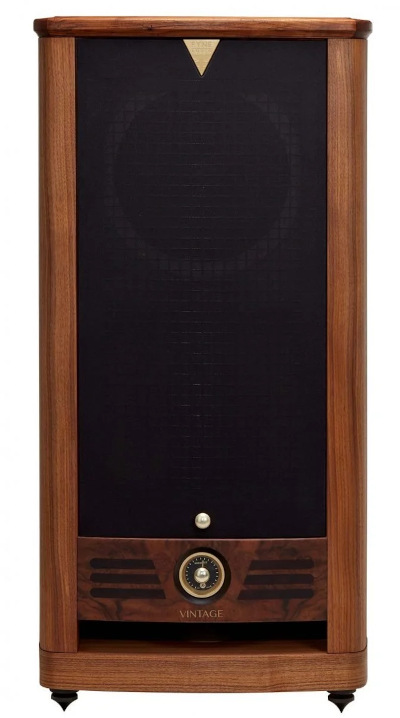

Brining all the scale, power and precision of the mighty Fyne Audio F1-12S to the Vintage Series’ timeless traditional design, the award winning Vintage Twelve is as stunning to observe as it is to hear.
From the deeply grained natural wood veneers wrapping the birch ply cabinets to the burr walnut inlays and sumptuous grilles with machined metal trim, choosing between the F1-12S and the Vintage 12 is purely down to traditional or contemporary personal tastes.
The large cabinet construction integrates a proven 300mm (12”) IsoFlare driver with FyneFlute surround, Deep Cryogenically Treated crossovers and Fyne’s unique front mounted Presence control.
The lossless, pure analogue dial is a bespoke work of art, perfectly weighted to exude the class and precision that defines the Vintage Series.
SPECIFICATIONS
System Type: 2 way, downwards firing port, with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS): 20 - 350
Peak power handling (Watt): 700
Continuous power handling (Watt RMS): 175
Sensitivity (2.83 Volt @ 1m): 96dB
Nominal impedance: 8 Ohm
Frequency response (-6dB typical in room): 24Hz- 26kHz
Drive unit complement: 1 x 300mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, neodymium magnet system
Crossover frequency: 750Hz
Crossover type: Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated
System adjustments: High frequency energy (750Hz - 26kHz) +/- 3dB Presence (2.5kHz - 5.0kHz) +/- 3dB
Dimensions - HxWxD: 1102 x 572 x 591mm (43.4 x 22.5 x 23.3")
Weight - Each: 77.1kg
Finishes : Walnut
Cabinet Construction: Birch ply with oiled walnut and solid walnut trim, extensive internal bracing
