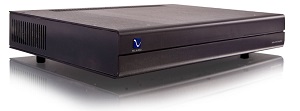

Stellar M700 Mono Amplifier - 700 watt Analog Cell power amplifier pair
The Stellar M700 mono amplifiers are a massively powerful engine capable of effortlessly driving demanding loudspeaker loads to concert levels. Stellar’s best. A pair of these placed on any loudspeaker brings forth the lush, rich and soul-satisfying power of two completely independent power blocks with headroom to spare. One listen to a hugely loud and complex musical passage effortlessly rendered by the M700 pair and you’ll know you made the right choice.
Rated at 350 Watts into 8Ω and 700 Watts into 4Ω, the M700 combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The M700’s rich, warm, and engaging sonic character comes from the Analog Cell. Its powerful, authoritative control over the loudspeaker stems from its high current, ultra-low impedance Class D output stage.
Stellar’s design imperative was to produce a truly musical sounding power amplifier that proudly competed with any amplifier under £3000. Its designer, PS Audio engineer Darren Myers, took the challenge and set to work on a new concept—a hybrid that would combine the best of today’s technology with time-honored techniques leveraging PS Audio’s forty plus years of experience.
The results are extraordinarily musical. Even from the earliest prototype we knew the Stellar power amplifier series was going to be something special. Stellar amplifiers never draw attention to themselves, a rare quality in amplifiers of any price. After hundreds of hours of tuning, voicing, and perfectionist tweaking, we were confident the ends justified the means.
Audition the Stellar M700 pair and you’ll appreciate Myer’s dedication to musical truth without compromise.
Technical Specifications:-
Unit Weight: 13 lbs
Unit Dimensions: 17” x 3” x 12” Chassis only. 13" deep including connectors.
Shipping Weight: 16.5 lbs
Shipping Dimensions: 22” x 8” x 17”
Color Options: Black or Silver
Voltage Options
Factory set only: Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power Inputs: IEC C14
Accessories Included: US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)
Audio Inputs: RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs: Copper base nickel plated binding posts (2 pair)
Other: DC Trigger Input
3.5mm 5-15VDC
Warranty: 3 years parts and labor
SIGNAL:-
Gain: 30.5dB +/-0.5dB
Sensitivity for rated output power: 1.01V
Noise: 1kHz@300 Watts < -100dB
Input impedance: Unbalanced 50KΩ, Balanced 100KΩ
Output Impedance: 50Hz, 2.8VRMS < 0.007Ω
Damping factor: 50Hz. 2.8VRMS
8Ω > 1100
4Ω > 550
Frequency Response: @2.8VRMS
10Hz – 20KHz +/- 0.5dB
10Hz – 50KHz +0.1/-3.0dB
THD & IM:-
1KHz, 1W/4Ω: < 0.02%
10-20KHz, 1W/4Ω: < 0.02%
10-50KHz, 1W/4Ω: < 0.05% (90kHz BW)
1KHz, 37.5W/4Ω: < 0.01%
Output Power:
120vac mains, 1kHz, 1% THD
8Ω 350W minimum
4Ω 700W minimum
2Ω Stable for musical transients
