Unico CD Uno
After introducing the Unico CD Due last year, Unison Research is now confirming its presence in
the world of digital audio with the new CD Uno.

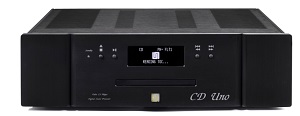

The Unico CD Uno is a high-specification DAC with integrated CD mechanism that is flexible and customizable. The CDUno combines Unison Research’s high-end sound quality with the broad playback possibilities offered by today’s digital audio solutions. The CD Uno will allow you to play back all the music formats and sampling rates currently available on the market.
The Unico CD Uno boasts a wide variety of inputs and outputs. On the back-panel there are inputs for USB and Toslink TM cables, and built inside the housing is a BluetoothTM receiver that allows for wireless streaming from compatible devices.
The audio stage uses one 12AU7//ECC82 double triode, operating in pure class A, followed by a solid state discrete buffer still operating in class A for a low impedance output and ideal audio behavior.Aesthetically the CD Uno, like the CD Due, differs from existing Unico products with its new three- fold faceplate, white LEDs and white display. This same aesthetic will pass over to the new Unico 90 and Unico 150 amplifiers, which are designed to be perfect matches for the CD Uno and CD Due.
v
Technical Specifications:-
Digital Inputs:
1 x USB
Standard: USB 2.0 Audio Class
frequencies: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, DSD64, DSD128, DSD256 Ready
Resolution: 16 to 32 bits
1x Toslink™:
Sampling frequencies: 44.1, 48, 88.2, 96 (176.4 and DSD64 DoP with high efficiency transmitters)
Resolution: 16 to 24 bits
1 x Bluetooth™ Receiver:
Standard: BT 3.0
Profiles: A2DP, SSP (HID supported with Android smartphones through SPP)
Sampling frequencies: 44.1kHz, 48kHz
Resolution: 16 bits
Digital Output:
1x S/PDIF
Output voltage: 0.5Vpp on 75 Ohms
Transport
8829CD-KHM DVD-Loader , Only audio CD
Display
128 X 64 White OLED graphic display
Digital to Audio stage
DAC: ESS Sabre ES9018K2M with jitter eliminator
SNR: 125dB (0dBFS, 1kHz, 192kHz, “A” weighted)
THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
Timing: low phase noise, high precision crystal
oscillators
IV converter:
NE5532AD high-performance, very low noise, use high-quality components like wima capacitor and wishay resistor
