Profoundly accurate sound with the full expressive power of the music.
Exceptional sonic purity, elimination of signal loss—in an exquisite, elegant design.

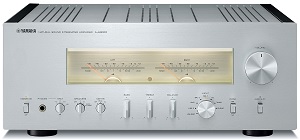

The supreme culmination of the Yamaha line—the A-S3000.
Rigid Streamlined Construction— provides strict anti-vibration protection, and enables shortest cabling routes
Large toroidal transformer, solidly mounted with independent three-dimensional inner frame
Comprehensive low impedance design, shortened signal paths and copper-plated chassis
Six mm thick top panel made of non-magnetic aluminium plate
Left-right symmetrical design for independent pre amp and power amp blocks
Floating and Balanced Power Amplifier with MOSFETs
All-stage balanced transmission
Direct drawing toroidal transformer for complete elimination of signal transmission loss
Exceptionally low impedance through secure screw connections
Superior quality electronic volume control for optimum sound
Discretely configured phono amp
Exquisite, large level meters reflect the dynamics in the music
Meticulously designed and beautiful in appearance—just like a musical instrument
Original speaker terminals for high sound quality, as well as beauty and ease of use
Obsessive, meticulous switch design— elaborate, richly textured, easy-to-use
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) -
170 W + 170 W
High Dynamic Power/Channel (8/6/4/2 ohms) -
120/150/200/300 W
Damping Factor -
250
Frequency Response -
5 Hz-100 kHz (+0 dB/-3 dB)
RIAA Equalization Deviation -
20 Hz-20 kHz +/-0.5 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) -
0.025%
Signal-to-Noise Ratio (CD) -
103 dB (S: 200 mV)
Input Sensitivity (CD) -
200mV/47k ohms
Dimensions (W x H x D) -
435 x 180 x 464 mm; 17-1/8” x 7-1/8” x 18-1/4”
Weight -
24.6 kg; 54.2 lbs
