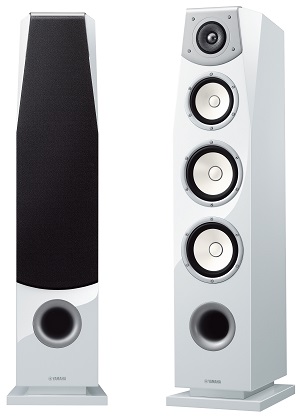

Yamaha's long tradition of excellence in speaker design is brought to full fruition with the NS-F901 floorstanding speaker.
This impressive speaker delivers incredibly transparent sound from all types of data-rich, high resolution sound sources.
Using innovative design techniques and the highest quality materials, it is a truly superior speaker.
Soavo Concept: Delivering Natural Sound
New A-PMD Midrange reproduces high resolution sources with richly clear detailed sound
New A-PMD Woofer provides low range reproduction with abundant power and responsiveness
Aluminum dome tweeter with DC-Diaphragm™ with neodymium magnet
Innovative cabinet design (non-parallel surfaces)
Three-way mitered-joint construction
Two-chamber cabinet (woofer and midrange separated by slanted partition) with vertical bracing
Highest quality parts including Solen capacitors in the networks
Graceful appearance designed by Toshiyuki Kita
Type
- 3-Way Bass-Reflex Floor-Standing Speaker System
Woofers
- Dual 16 cm (6-1/2”) Advanced PMD cone
MidRange Driver
- 13 cm (5”) Advacned PMD cone
Tweeter
- 3 cm (1”) aluminium dome
Frequency Response
- 32 Hz-50 kHz
Nominal Input Power
- 50 W
Maximum Input Power
- 200 W
Sensitivity
- 89 dB / 2.83 V/1 m
Crossover Frequencies
- 450 Hz / 3.5 kHz
Impedance
- 6 ohms
Dimensions (W x H x D)
- 270 x 1,060 x 425 mm ; 10-5/8” x 41-3/4” x 16-3/4”
Weight
30.7 kg; 67 lbs./unit
