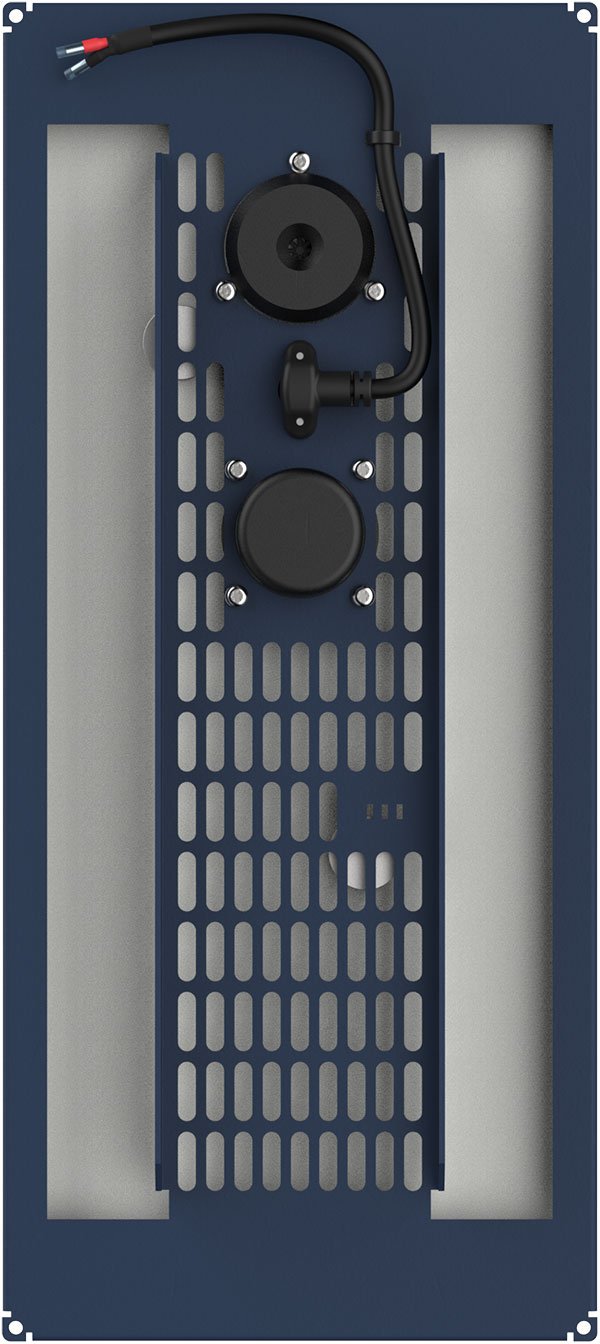

Amina AIW150i - High Performance Invisible Speaker
£624.00 inc. VAT
(£520.00 ex. VAT)
Completely invisible, high fidelity loudspeaker
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster, wood or wood veneer
Suitable for low powered audio systems
Features new technologies providing smooth frequency response and enhanced clarity
The AIW150i Evolution Series loudspeaker takes invisible loudspeakers to a whole new territory with respect to sound quality. Easy to install and rendered invisible behind a 2mm skim of plaster or other materials such as wood, wood veneer or leather. It is the perfect solution for aesthetically sensitive applications.
OptiDaming technology delivers increased low frequency extension and improved mid-range accuracy by selectively tuning discrete vibrational modes that are generated in the loudspeaker’s acoustical panel.
Specifications
Nominal impedance 8 Ohms (APU150 connected)
Power handling (continuous/ peak) 15W/ 30W
Sensitivity (2mm plaster/ mud skim) 83dB 1m/ 2.83Vrms (APU150 connected)
Frequency response 105Hz - 20kHz (-6db) mounted in Backbox CV345 (APU150 connected)
Electrical connection Blue butt splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 40mm (173/4” x 135/8” x 15/8”)
Product weight 1.10Kg (2.43lbs)
Fixing requirements Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit APU150 or APURS/ 8E
Manufacturer limited warranty for residential applications 10 years
On Axis Frequency Response Product installed using Amina BackboxCV345 in 12.5mm (1/2”) plasterboard with 400mm (16”) stud spacing and 2mm thick plaster skim coat applied
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster, wood or wood veneer
Suitable for low powered audio systems
Features new technologies providing smooth frequency response and enhanced clarity
The AIW150i Evolution Series loudspeaker takes invisible loudspeakers to a whole new territory with respect to sound quality. Easy to install and rendered invisible behind a 2mm skim of plaster or other materials such as wood, wood veneer or leather. It is the perfect solution for aesthetically sensitive applications.
OptiDaming technology delivers increased low frequency extension and improved mid-range accuracy by selectively tuning discrete vibrational modes that are generated in the loudspeaker’s acoustical panel.
Specifications
Nominal impedance 8 Ohms (APU150 connected)
Power handling (continuous/ peak) 15W/ 30W
Sensitivity (2mm plaster/ mud skim) 83dB 1m/ 2.83Vrms (APU150 connected)
Frequency response 105Hz - 20kHz (-6db) mounted in Backbox CV345 (APU150 connected)
Electrical connection Blue butt splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 40mm (173/4” x 135/8” x 15/8”)
Product weight 1.10Kg (2.43lbs)
Fixing requirements Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit APU150 or APURS/ 8E
Manufacturer limited warranty for residential applications 10 years
On Axis Frequency Response Product installed using Amina BackboxCV345 in 12.5mm (1/2”) plasterboard with 400mm (16”) stud spacing and 2mm thick plaster skim coat applied
£520.00
