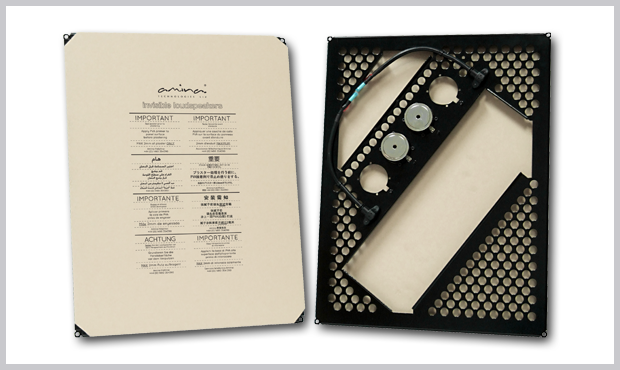

Amina AIW2X - Dual Input Invisible Loudspeakers
£810.00 inc. VAT
(£675.00 ex. VAT)
The Amina AIWX Dual Channel Series of Plaster-In Invisible Loudspeakers are the world’s first high performance loudspeaker that is designed to be skimmed over with 2mm of normal finishing plaster, providing a completely concealed audio solution whilst allowing designers and builders a very high quality wall or ceiling finish ready to accept a decoration of choice (paint, paper, etc). By using the principle of distributed vibrations, the AIWX Dual Channel Series Loudspeakers produce a sound that has exceptional clarity and room filling properties and have much in common with the way an acoustic musical instrument works. The width of the product (345mm) allows it to fit well within 400mm centred wood or metal stud-work commonly used today in walls and ceilings. The AIW2X and AIW4X are ideal for smaller rooms such as bathrooms and dressing rooms or any room or system that requires a stereo signal to be reproduced from a single loudspeaker.
Completely invisible, high fidelity loudspeaker
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster
Suitable for low/medium powered audio systems
Features new technologies providing smooth frequency response and enhanced clarity.
Dual input ‘Single-stereo speaker’ The Amina AIWX Series of Plaster-In dual input are designed for smaller areas when stereo seperation is not critical. The speakers are designed to be skimmed over with 2mm of normal finishing plaster or covered with wood or wood veneer, providing a completely concealed audio solution whilst giving designers and builders a high quality wall finish ready to accept a decoration of choice (paint, paper, etc). By using the principle of vibrational panels, the exceptional clarity and room filling properties have much in common with the way an acoustic musical instrument works.
Specifications AIW2X
Nominal impedance 8 Ohms + 8 Ohms
Power handling (continuous/ peak) 20W + 20W
Sensitivity (2mm plaster/ mud skim) 85dB 1m/ 2.83Vrms (both channels driven)
Frequency response 100Hz - 20kHz (-6dB) using basic mounting blocks
Electrical connection Blue butt splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 38mm (173/4” x 135/8” x 11/2”)
Product weight 1.37Kg (3.02lbs)
Fixing requirements Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit APU2 or APURS/ 8
Manufacturer limited warranty for residential applications 10 years
Completely invisible, high fidelity loudspeaker
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster
Suitable for low/medium powered audio systems
Features new technologies providing smooth frequency response and enhanced clarity.
Dual input ‘Single-stereo speaker’ The Amina AIWX Series of Plaster-In dual input are designed for smaller areas when stereo seperation is not critical. The speakers are designed to be skimmed over with 2mm of normal finishing plaster or covered with wood or wood veneer, providing a completely concealed audio solution whilst giving designers and builders a high quality wall finish ready to accept a decoration of choice (paint, paper, etc). By using the principle of vibrational panels, the exceptional clarity and room filling properties have much in common with the way an acoustic musical instrument works.
Specifications AIW2X
Nominal impedance 8 Ohms + 8 Ohms
Power handling (continuous/ peak) 20W + 20W
Sensitivity (2mm plaster/ mud skim) 85dB 1m/ 2.83Vrms (both channels driven)
Frequency response 100Hz - 20kHz (-6dB) using basic mounting blocks
Electrical connection Blue butt splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 38mm (173/4” x 135/8” x 11/2”)
Product weight 1.37Kg (3.02lbs)
Fixing requirements Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit APU2 or APURS/ 8
Manufacturer limited warranty for residential applications 10 years
£675.00
