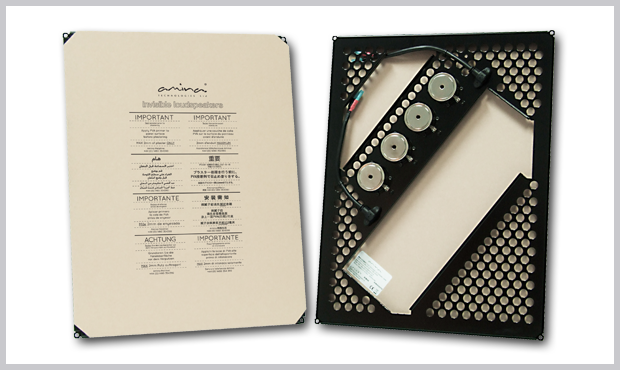

Amina AIW4X - Dual Input Invisible Loudspeakers
£1,200.00 inc. VAT
(£1,000.00 ex. VAT)
•
Completely invisible, high fidelity loudspeaker
• Easy to install into cavity walls, solid walls or ceilings
• Simply skim over with a finishing coat of plaster, wood or wood veneer
• Suitable for low/medium powered audio systems
• Features new technologies providing smooth frequency response and enhanced clarity.
• Dual input ‘Single-stereo speaker’
The Amina AIWX Series of Plaster-In dual input are designed for smaller areas when stereo seperation is not critical. The speakers are designed to be skimmed over with 2mm of normal finishing plaster or covered with wood or wood veneer, providing a completely concealed audio solution whilst giving designers and builders a high quality wall finish ready to accept a decoration of choice (paint, paper, etc). By using the principle of vibrational panels, the exceptional clarity and room filling properties have much in common with the way an acoustic musical instrument works.
Specifications:-
Nominal impedance 8 Ohms + 8 Ohms
Power handling (continuous/ peak) 40W + 40W
Sensitivity (2mm plaster/ mud skim) 88dB 1m/ 2.83Vrms (both channels driven)
Frequency response 100Hz - 20kHz (-6dB) using basic mounting blocks
Electrical connection Blue butt splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 38mm (173/4” x 135/8” x 11/2”)
Product weight 1.88Kg (4.14lbs)
Fixing requirements Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit APU2 or APURS/ 8
Manufacturer limited warranty for residential applications 10 years
• Easy to install into cavity walls, solid walls or ceilings
• Simply skim over with a finishing coat of plaster, wood or wood veneer
• Suitable for low/medium powered audio systems
• Features new technologies providing smooth frequency response and enhanced clarity.
• Dual input ‘Single-stereo speaker’
The Amina AIWX Series of Plaster-In dual input are designed for smaller areas when stereo seperation is not critical. The speakers are designed to be skimmed over with 2mm of normal finishing plaster or covered with wood or wood veneer, providing a completely concealed audio solution whilst giving designers and builders a high quality wall finish ready to accept a decoration of choice (paint, paper, etc). By using the principle of vibrational panels, the exceptional clarity and room filling properties have much in common with the way an acoustic musical instrument works.
Specifications:-
Nominal impedance 8 Ohms + 8 Ohms
Power handling (continuous/ peak) 40W + 40W
Sensitivity (2mm plaster/ mud skim) 88dB 1m/ 2.83Vrms (both channels driven)
Frequency response 100Hz - 20kHz (-6dB) using basic mounting blocks
Electrical connection Blue butt splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 38mm (173/4” x 135/8” x 11/2”)
Product weight 1.88Kg (4.14lbs)
Fixing requirements Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit APU2 or APURS/ 8
Manufacturer limited warranty for residential applications 10 years
£1,000.00
