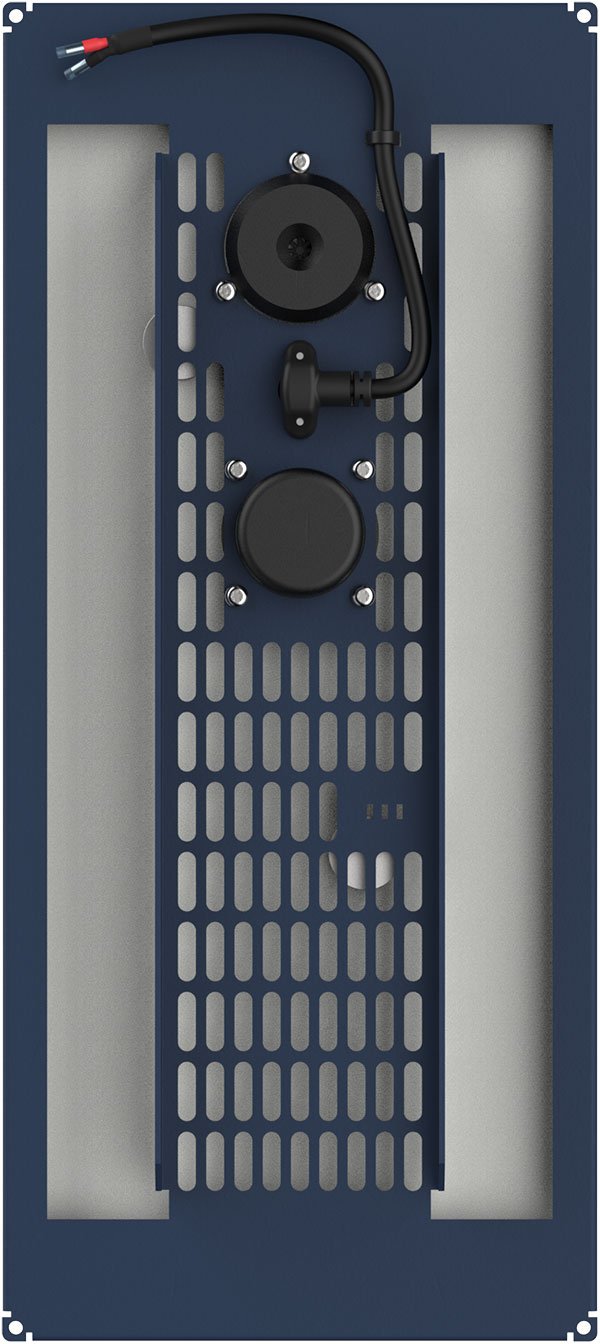

Amina AIW550iN - High Performance Invisible Speakers
£1,260.00 inc. VAT
(£1,050.00 ex. VAT)
Completely invisible, high fidelity loudspeaker
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster
Suitable for medium/ high powered audio systems
Features new technologies providing smooth frequency response and enhanced clarity. The AIW550E Evolution Series loudspeaker takes invisible loudspeakers to a whole new territory with respect to sound quality. Easy to install and rendered invisible behind a 2mm skim of plaster or other materials such as wood, wood veneer or leather. It is the perfect solution for aesthetically sensitive applications.
OptiDaming technology delivers increased low frequency extension and improved mid-range accuracy by selectively tuning discrete vibrational modes that are generated in the loudspeaker’s acoustical panel.
OptiDrive technology optimally distributes the audio signal to the speaker’s exciters to ensure exceptional high frequency clarity on and off-axis.
Specifications
AIW550E
Nominal impedance
4 Ohms (APU550 connected)
Power handling (continuous/ peak)
50W/ 100W
Sensitivity (2mm plaster/ mud skim)
87dB 1m/ 2.83Vrms (APU550 connected)
Frequency response
105Hz - 20kHz (-6db) mounted in Backbox CV345 (APU550 connected)
Electrical connection
Blue butt splice crimp terminals (14-16 AWG)
Dimensions
450mm x 345mm x 40mm (173/4” x 135/8” x 15/8”)
Product weight
1.69Kg (3.73lbs)
Fixing requirements
Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit
APU550 or APURS/ 8E
Manufacturer limited warranty for residential applications 10 years
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster
Suitable for medium/ high powered audio systems
Features new technologies providing smooth frequency response and enhanced clarity. The AIW550E Evolution Series loudspeaker takes invisible loudspeakers to a whole new territory with respect to sound quality. Easy to install and rendered invisible behind a 2mm skim of plaster or other materials such as wood, wood veneer or leather. It is the perfect solution for aesthetically sensitive applications.
OptiDaming technology delivers increased low frequency extension and improved mid-range accuracy by selectively tuning discrete vibrational modes that are generated in the loudspeaker’s acoustical panel.
OptiDrive technology optimally distributes the audio signal to the speaker’s exciters to ensure exceptional high frequency clarity on and off-axis.
Specifications
AIW550E
Nominal impedance
4 Ohms (APU550 connected)
Power handling (continuous/ peak)
50W/ 100W
Sensitivity (2mm plaster/ mud skim)
87dB 1m/ 2.83Vrms (APU550 connected)
Frequency response
105Hz - 20kHz (-6db) mounted in Backbox CV345 (APU550 connected)
Electrical connection
Blue butt splice crimp terminals (14-16 AWG)
Dimensions
450mm x 345mm x 40mm (173/4” x 135/8” x 15/8”)
Product weight
1.69Kg (3.73lbs)
Fixing requirements
Amina BackboxCV345 / BackboxSW345 (Wood adhesive and fixing blocks available on request)
In-line protection unit
APU550 or APURS/ 8E
Manufacturer limited warranty for residential applications 10 years
£1,050.00
