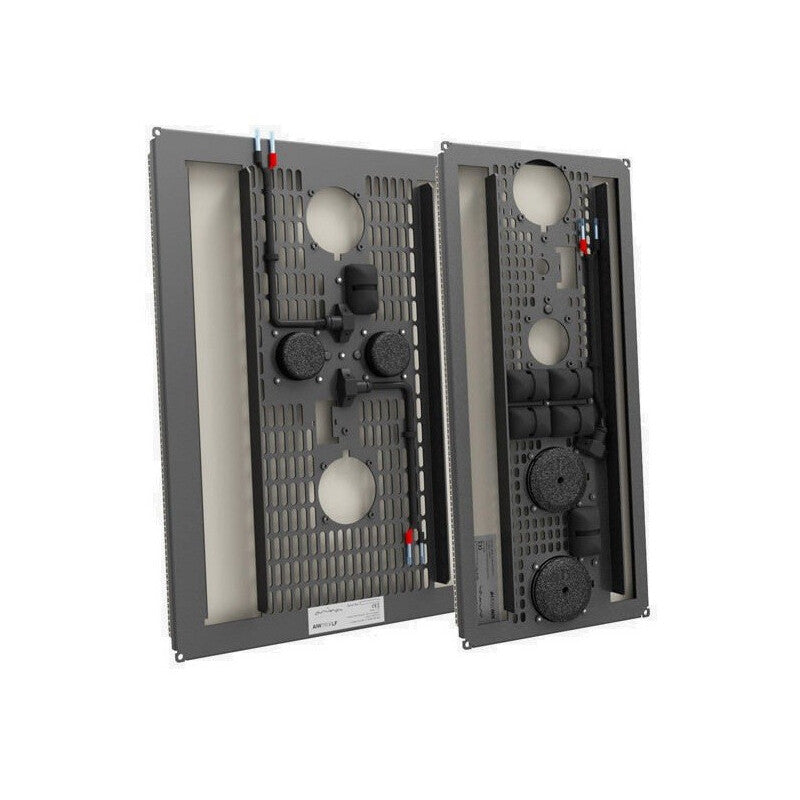

Amina AIW750iN - High Performance Invisible Speakers
£2,112.00 inc. VAT
(£1,760.00 ex. VAT)
Completely invisible, high end, 2-way loudspeaker
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster, wood or wood veneer
Suitable for high-end powered audio systems
Features new technologies providing superior bass extension and outstanding mid-range and treble resolution The AIW750E Evolution Series loudspeaker takes invisible loudspeakers to a whole new territory with respect to sound quality. When the best sound quality is required the AIW750E will deliver bass, clarity and openness like no other invisible or discrete loudspeaker.
OptiDaming technology delivers increased low frequency extension and improved mid-range accuracy by selectively tuning discrete vibrational modes that are generated in the loudspeaker’s acoustical panel
OptiDrive technology optimally distributes the audio signal to the speaker’s exciters to ensure exceptional high frequency clarity on and off-axis
OptiModal technology employs two seperate acoustic panels, each operating over a different, fully optimised frequency range via a passive crossover. This provides greater bandwidth, clarity and focus compared to other models within the range
EVOLUTION SERIES Specifications AIW750E
Nominal impedance
4 Ohms (APU750 connected)
Power handling (continuous/ peak)
100W/ 200W
Sensitivity (2mm plaster/ mud skim)
87dB 1m/ 2.83Vrms (APU750 connected)
Frequency response
50Hz - 20kHz (-6db) mounted in Backbox CV345 and CV200 (APU750 connected)
Electrical connection
Blue butt splice crimp terminals (14-16 AWG), 4-core cable
Dimensions (LF Panel)
Dimensions (HF Panel) 450mm x 345mm x 40mm (17 3/4” x 135/8” x 15/8”) 450mm x 200mm x 40mm (173/4” x 77/8” x 15/8”)
Product weight
HF: 1.17Kg (2.58lbs) LF: 1.29Kg (2.84lbs)
Fixing requirements
Amina BackboxCV345 and CV200 / BackboxSW345 and CV200 (Wood adhesive and fixing blocks available on request)
In-line protection unit
APU750 Manufacturer limited warranty for residential applications 10 years
Easy to install into cavity walls, solid walls or ceilings
Simply skim over with a finishing coat of plaster, wood or wood veneer
Suitable for high-end powered audio systems
Features new technologies providing superior bass extension and outstanding mid-range and treble resolution The AIW750E Evolution Series loudspeaker takes invisible loudspeakers to a whole new territory with respect to sound quality. When the best sound quality is required the AIW750E will deliver bass, clarity and openness like no other invisible or discrete loudspeaker.
OptiDaming technology delivers increased low frequency extension and improved mid-range accuracy by selectively tuning discrete vibrational modes that are generated in the loudspeaker’s acoustical panel
OptiDrive technology optimally distributes the audio signal to the speaker’s exciters to ensure exceptional high frequency clarity on and off-axis
OptiModal technology employs two seperate acoustic panels, each operating over a different, fully optimised frequency range via a passive crossover. This provides greater bandwidth, clarity and focus compared to other models within the range
EVOLUTION SERIES Specifications AIW750E
Nominal impedance
4 Ohms (APU750 connected)
Power handling (continuous/ peak)
100W/ 200W
Sensitivity (2mm plaster/ mud skim)
87dB 1m/ 2.83Vrms (APU750 connected)
Frequency response
50Hz - 20kHz (-6db) mounted in Backbox CV345 and CV200 (APU750 connected)
Electrical connection
Blue butt splice crimp terminals (14-16 AWG), 4-core cable
Dimensions (LF Panel)
Dimensions (HF Panel) 450mm x 345mm x 40mm (17 3/4” x 135/8” x 15/8”) 450mm x 200mm x 40mm (173/4” x 77/8” x 15/8”)
Product weight
HF: 1.17Kg (2.58lbs) LF: 1.29Kg (2.84lbs)
Fixing requirements
Amina BackboxCV345 and CV200 / BackboxSW345 and CV200 (Wood adhesive and fixing blocks available on request)
In-line protection unit
APU750 Manufacturer limited warranty for residential applications 10 years
£1,760.00
