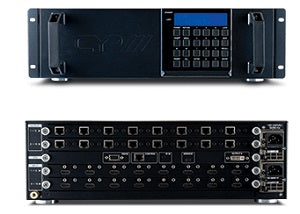

CYP MOD-16 (MOD16) Modular Matrix Chassis
£5,620.00 inc. VAT
(£4,683.33 ex. VAT)
Available - 2-3 Days
MOD-16 - 16x16 Modular Matrix Chassis (3U) Matrix
The 16x16 Modular Matrix is designed to allow the switching and distribution of up to 16 source devices to up to 16 connected displays, either directly via HDMI, DVI or via CAT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration).
Providing unparalleled levels of flexibility, with an advanced modular design these models can be setup in a wide variety of combinations allowing users the ability to tailor the Matrix to their requirements by simply adding or removing the input or output modules as required. The Modular Matrix is supplied with dual removable internal PSU's which allow for easy inspection and maintenance with zero down time. Also included is a DVI output for local monitoring of the output allowing installers to easily monitor, test, and configure the Inputs and Outputs on installation
In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems
APPLICATIONS:
Public information display
Educational demo
Professional Presentation
Advertising display
PACKAGE CONTENTS
16x16 Modular Matrix Enclosure (including CPU control board & dual power supplies)
2× Input Module Board - HDMI/DVI/CAT5e/6/7 or VGA (Optional)
2× Output Module Board - HDMI/DVI/CAT5e/6/7 (Optional)
1× IR Blaster
2× IR Extender
2× Power Cord
Operation manual
SYSTEM REQUIREMENTS:
Up to 16 HDMI/DVI/CAT5e/6/7 or VGA source devices (dependent on module configuration) connected with appropriate cables.
Up to 16 displays (TV or monitor) or AV receivers, equipped with HDMI/ DVI/CAT5e/6/7 connection (dependent on module configuration) connected with appropriate cables
Industry standard CAT5e/6/7 cable (for CAT5e/6/7 inputs/outputs) Compatible PoC HDBaseT™ Transmitters/Receivers for CAT5e/6/7 Input/Output modules
Technical Specifications:-
Input ports Up to 16× HDMI or DVI or CAT5e/6/7 or VGA ) dependent on module configuration
Output ports Up to 16× HDMI or DVI or CAT5e/6/7 dependent on module on module configuration
Power Supply 2× AC 110~240V (US/EU standards, CE/FCC/UL certified)
HMDI Cable I/O Distance 15m/8-bits, 10m/12-bits
Dimensions (mm) 482(W) × 484(D) × 145(H)
Weight 14.4 kg
Chassis Material Metal
Colour Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 130 W
The 16x16 Modular Matrix is designed to allow the switching and distribution of up to 16 source devices to up to 16 connected displays, either directly via HDMI, DVI or via CAT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration).
Providing unparalleled levels of flexibility, with an advanced modular design these models can be setup in a wide variety of combinations allowing users the ability to tailor the Matrix to their requirements by simply adding or removing the input or output modules as required. The Modular Matrix is supplied with dual removable internal PSU's which allow for easy inspection and maintenance with zero down time. Also included is a DVI output for local monitoring of the output allowing installers to easily monitor, test, and configure the Inputs and Outputs on installation
In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems
APPLICATIONS:
Public information display
Educational demo
Professional Presentation
Advertising display
PACKAGE CONTENTS
16x16 Modular Matrix Enclosure (including CPU control board & dual power supplies)
2× Input Module Board - HDMI/DVI/CAT5e/6/7 or VGA (Optional)
2× Output Module Board - HDMI/DVI/CAT5e/6/7 (Optional)
1× IR Blaster
2× IR Extender
2× Power Cord
Operation manual
SYSTEM REQUIREMENTS:
Up to 16 HDMI/DVI/CAT5e/6/7 or VGA source devices (dependent on module configuration) connected with appropriate cables.
Up to 16 displays (TV or monitor) or AV receivers, equipped with HDMI/ DVI/CAT5e/6/7 connection (dependent on module configuration) connected with appropriate cables
Industry standard CAT5e/6/7 cable (for CAT5e/6/7 inputs/outputs) Compatible PoC HDBaseT™ Transmitters/Receivers for CAT5e/6/7 Input/Output modules
Technical Specifications:-
Input ports Up to 16× HDMI or DVI or CAT5e/6/7 or VGA ) dependent on module configuration
Output ports Up to 16× HDMI or DVI or CAT5e/6/7 dependent on module on module configuration
Power Supply 2× AC 110~240V (US/EU standards, CE/FCC/UL certified)
HMDI Cable I/O Distance 15m/8-bits, 10m/12-bits
Dimensions (mm) 482(W) × 484(D) × 145(H)
Weight 14.4 kg
Chassis Material Metal
Colour Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 130 W
