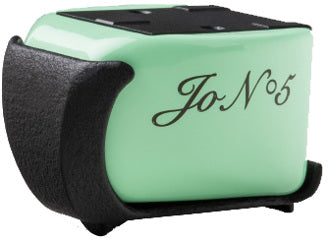

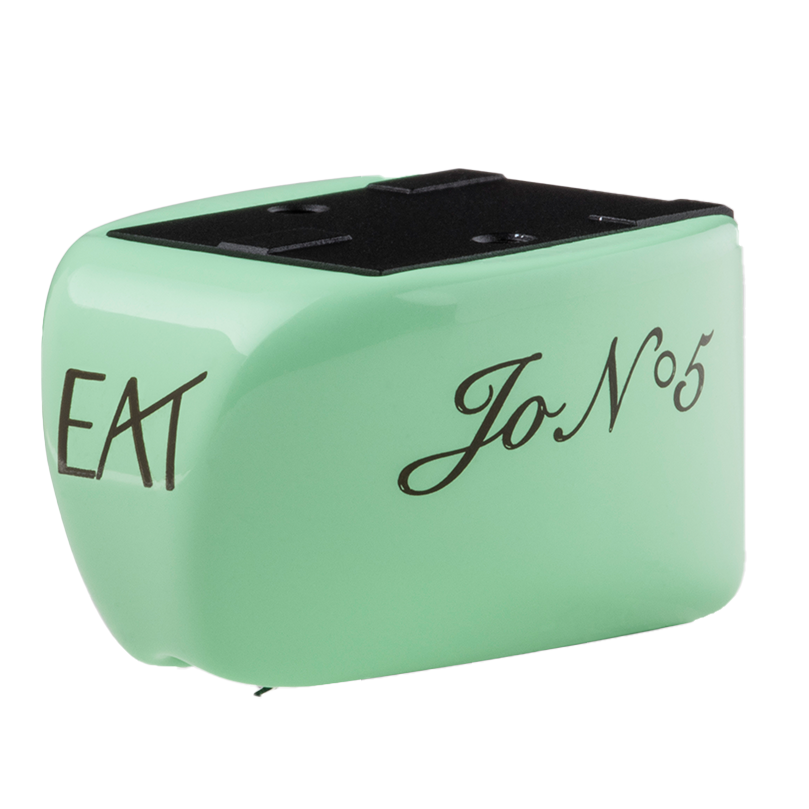

EAT's Jo No.5 Moving Coil Cartridge

High-End E.A.T cartridge that looks as impressive as it sounds thanks to its mint green exterior, and revealing, immersive presentation that lives up to the quality expected of E.A.T.

• Accurate sound staging places you at the front and centre of the performance
• Moving Coil cartridge design
• Nude Fine-Line diamond stylus
• Improved conical aluminium cantilever
• Selective laser sintering manufacturing process
• Body and stylus guard made of Polyamide

Introducing the E.A.T Jo No.5 cartridge, crafted for exceptional sonic performance and stunning aesthetics with its mint green exterior, delivering an immersive presentation that lives up to the quality expected of E.A.T.

Both the cartridge body and stylus guard are made of polyamide, chosen for its high wear resistance and rigidity, which contribute to the improved performance of the cartridge, and ensuring the audio signal being sent through the remaining system is as sonically perfect as possible.

This is E.A.T.'s second cartridge creation, following the highly acclaimed and successful Yosegi MC. A sophisticated masterpiece both in terms of sonic performance and visual appeal featuring a Nude Fine Line Stylus shape, the Jo No.5 is designed to extract high levels of detail from the record groove, offering a truthful yet surprisingly musical reproduction of both old and new vinyl. Furthermore, with an aluminium cantilever, the Jo No.5 is highly rigid and capable of withstanding the demands of the record groove.

The manufacturing process includes the use of selective laser sintering, which involves fusing together thin layers of polyamide powder to construct the final structure, the result is a durable cartridge body that offers great levels of resistance against unwanted resonances. True to E.A.T. style, the bright mint green finish sported by the outer body of the, gives the Jo No 5 a distinct, elegant appearance.

Specifications:

• Output Voltage (@ 1000Hz, 5cm/sec.)
  0.33 mV
• Channel Balance (@ 1000Hz)
  > 1.2 dB
• Channel Separation (@ 1000Hz)
  > 25 dB
• Channel Separation (@ 15000Hz)
  > 16 dB
• Frequency Response
  (20 - 26,000 Hz) ±1.5dB dB
• Tracking Ability (@ 315Hz at Recommended Tracking Force)
  80 μm
• Compliance, Dynamic, Lateral
  12 μm
• Stylus Type
  Nude Fine Line
• Tracking Force Range
  2.2 - 2.5 g
• Recommended Tracking Force
  2.4 g
• Tracking Angle
  20 °
• Internal Impedance
  5 Ω
• Cartridge Body Material
  Polyamide
• Coil Wire Material
  Pure 4N Copper
• Recommended Load Impedance
  > 20 Ω
• Cartridge Weight
  15 g
