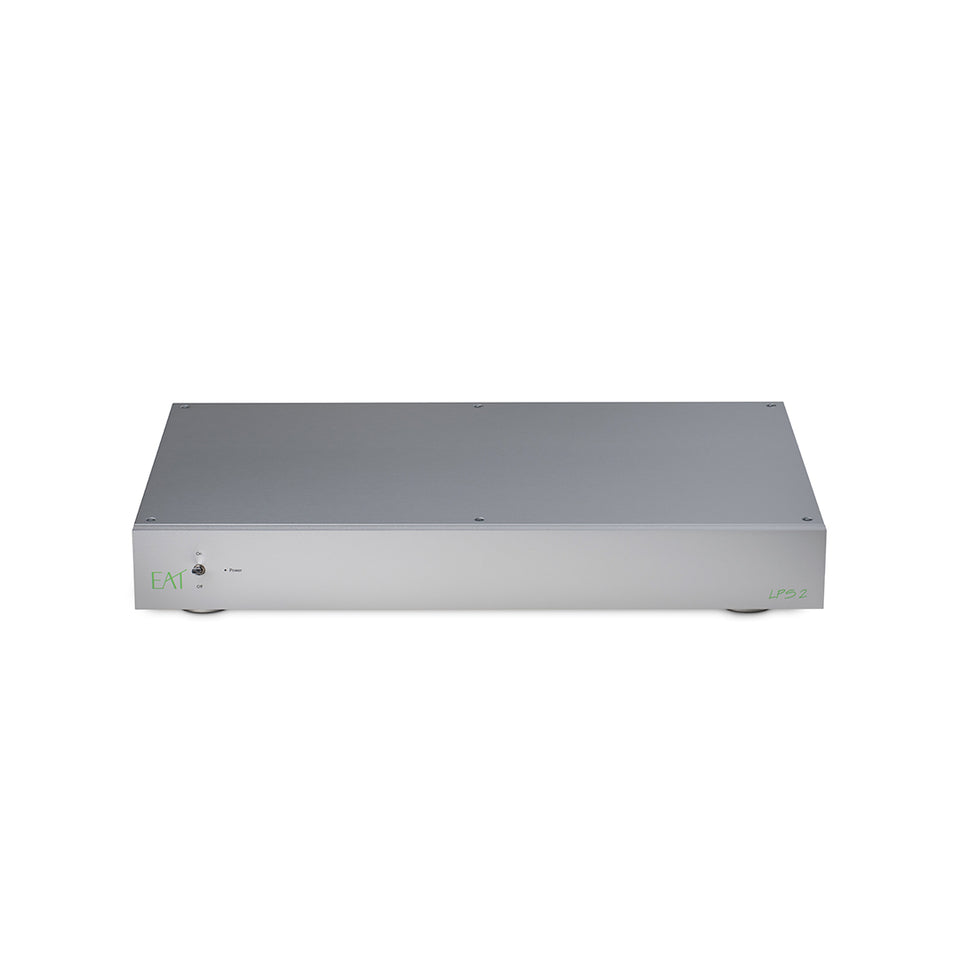

EAT LPS2 Linear Power Supply

Elegant power supply. E.A.T. strongly believe that power supply is a part of signal path and the quality of power supply extremely significantly contribute to the sound quality. It is done without any compromise.

The E.A.T. LPS2 is engineered to provide ultra-clean and stable power, ensuring optimal performance for E.A.T. phono stages and turntables. Designed without compromise, this power supply plays a crucial role in maintaining superior sound quality.

Featuring full-bridge rectification with ultra-fast diodes, an 8800uF filtration bank, a fully discrete voltage regulator, and a TL431 voltage reference, the LPS2 achieves exceptionally low noise and precise regulation. Ripple voltage is kept below 1 microvolt, while voltage accuracy exceeds ±0.05%, outperforming even battery-powered alternatives. Temperature drift is minimized beyond standard expectations, ensuring consistent operation.

With dual outputs and two independent power supplies in one unit, the LPS2 eliminates RFI from the mains, preserving audio purity. Its sleek and elegant design seamlessly integrates into any high-end audio setup.

Specifications:

• Turntable Output Power
  15V/2A ± 0,05%, noise max. 10uV
• Phono Stage Output Power
  18V/1.5A ± 0,05%, noise max 1uV
• Dimensions (W x H x D)
  435 x 60 x 272 mm
• Weight
  4.9 kg
