Future Automation

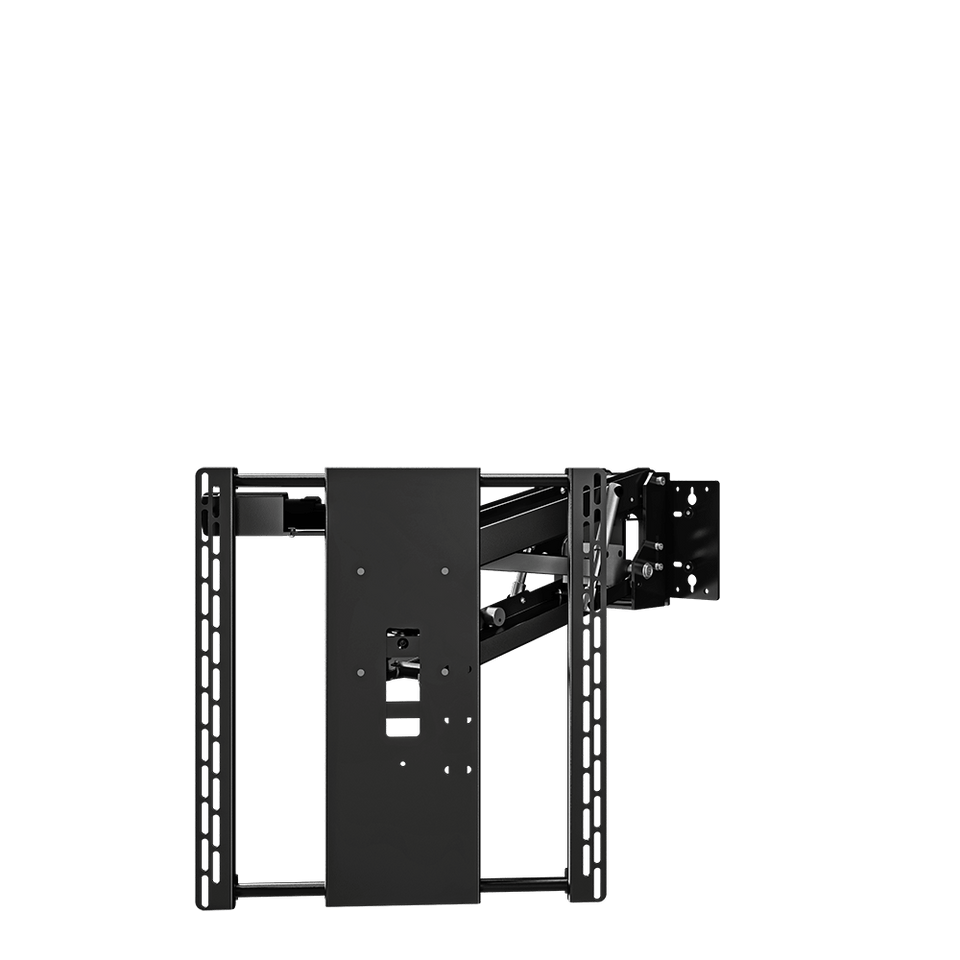

Future Automation EAD-S
£4,478.00 inc. VAT
(£3,731.67 ex. VAT)
Available - 14 Days
ELECTRIC ADVANCE & DROP WITH SWIVEL
The Electric Advance and Drop with Swivel TV Wall Mount is a one of a kind bracket designed to move a flat screen down to a more desirable viewing height.
The down and out movement make this ideal for mounting a TV over a fireplace as the EAD moves forward to clear a mantle piece and then drops down for a more favourable viewing position. A truly unique and creative solution.
With a motorised swivel feature, allowing up to 45° in either direction (installation and screen dependent), the EAD-S provides uncompromising viewing angles from anywhere in a room.
- Unique Forward and Drop (Out and Down) Motion
- Simple Hook-on Style Screen Mount (As found on the PS Bracket range)
- Perfect For Mounting TV Above Fireplaces
- Full Cable Management
- Smooth Quiet Motion
TECHNICAL SPECIFICATION
| PRODUCT CODE | EAD-S |
|---|---|
| BOLT PATTERN | (H) 400, 300, 200 (W) 400, 300, 200 |
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DEPTH FROM WALL | 180MM (7 1/16") |
| FINISH | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE |
| MAX DROP FROM IN POSITION | 533MM (21") |
| MAX EXTENSION FROM WALL | 588MM (23 3/16") |
| MAX ROTATION | 47° - BI-DIRECTIONAL (SCREEN WIDTH DEPENDENT) |
| MAX WEIGHT | 50KG (110LB) |
| MOVEMENT TYPE | MOTORISED |
| SCREEN SIZES (APPROX) | 50"-80" |
£3,731.67
