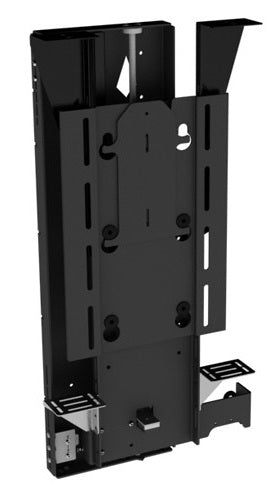

Future Automation LSL TV Lift 29-40 inch

TV Lift 29"-40"

The LSL TV Lift mechanism is suited to screens from approximately 29"-40". It is available with the following lid types to cater for any situation.

Lid Types:-
Box Enclosure (LSL-BE) A box enclosure surrounds the screen or a floating lid that raises with the lift.

Electric Flap (LSL-EFA) Before the lift raises, a motorised arm pushes the lid open, closing after the lift lowers.

Push Flap (LSL-PF)As the lift raises there is a roller that manually pushes the flap open, closing when the lift lowers with gravity.

 Quiet and Smooth Action at Approximately 40mm(1.6") per second
 Full Cable Management
 Wide Range of Mounting Options
 24V DC motor - suitable for direct DC supply
 Marine Suitable Robust Beam

LSL BE1 - Box Enclosure

Control Box Dimensions 150 x 210 x 50mm (5.9 x 8.26 x 1.96")
Control Options RS232 / Contact Closure / IR (RF Available)
Finish (Custom Available) Satin Black Paint - RAL 9005
Lid Types Available LSL-BE - Box Enclosure
LSL-EFA - Electric Flap
LSL-PF - Push Flap
Max Lifting Capacity 25kg (55lbs)
Max Lifting Capacity (Marine) 16kg (35lbs)
Max Screen Height 410mm (16.14")
Movement Type Motorised
Output Power Supply Yes(12V)
Power Consumption 250 - 500W
Power Consumption (Standby) 100mA
Power Supply 240V or 110V
Screen Sizes (approx) 19-32"

LSL BE2 Box Enclosure (Same as above except for):
Max Screen Height 524mm (20.62")
Screen Sizes (Approx) 32-40"

LSL-BE3 Box Enclosure (Same as above except for):
Max Screen Height 599mm (23.58")
Screen Sizes (Approx) 40"

LSL-EFA1 Electric Push Up Lid (Same as LSL-BE1 except for):
Lid Type Available: LSL-EFA Electric Flap
Max Screen Height 410mm (16.14")
Screen Sizes (approx) 19-32"

LSL-EFA2 Electric Push Up Lid (Same as LSL-BE1 except for):
Lid Type Available: LSL-EFA Electric Flap
Max Screen Height 524mm (20.62")
Screen Sizes (approx) 32-40"

LSL-EFA3 Electric Push Up Lid (Same as LSL-BE1 except for):
Lid Type Available: LSL-EFA Electric Flap
Max Screen Height 599mm (23.58")
Screen Sizes (approx) 40"

LSL-PF1 Push Up Lid (Same as LSL-BE1 except for):
Lid Type Available: LSL-PF - Push Flap
Max Screen Height 410mm (16.14")
Screen Sizes (approx) 19-32"

LS-LPF2 Push Up Lid (Same as LSL-BE1 except for):
Lid Type Available: LSL-PF - Push Flap
Max Screen Height 525mm (20.62")
Screen Sizes (approx) 32-40"

LS-LP3 Push Up Lid (Same as LSL-BE1 except for):
Lid Type Available: LSL-PF - Push Flap
Max Screen Height 599mm (23.58")
Screen Sizes (approx) 40"
