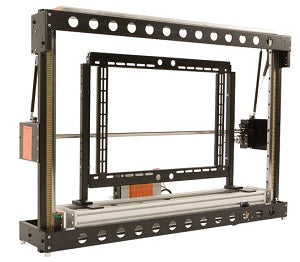

Future Automation ML Heavy Duty Lift Mechanism

TV Lift 65"-75"

The Heavy Duty TV Lift is a mechanism that employs the same iconic drop and roll flap mechanism as the Plasma Lift range. Built with a rack and pinion system, the elaborate guide system ensures a smooth and robust lifting action. Ideal for indoor marine applications and for large screens over 65” or where you wish to have a deep speaker or VC Camera mounted with the screen.

Unique drop and roll flap mechanism
Full Cable Management
Custom sized to suit exact size of screen
Accurate and smooth guide system
Positively driven rack system for secure and robust lifting
Custom frames for deeper screens and speakers

Technical Specifications for ML:-
Control Options RS232 / Contact Closure / IR (RF Available)
Max Screen Depth 155mm (6.10")
Max Weight 120kg (265lbs)
Movement Type Motorised

Technical Specifications for ML-D375:-
Control Options RS232 / Contact Closure / IR (RF Available)
Max Screen Depth 205mm (8.07")
Max Weight 120kg (265lbs)
Movement Type Motorised
