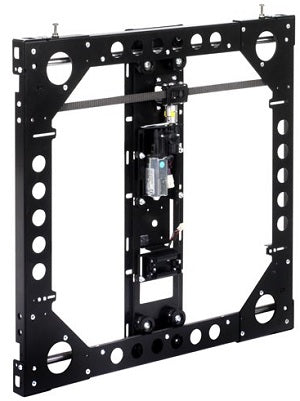

Future Automation PICSIDE Picture Slide Mechanism
£3,000.00 inc. VAT
(£2,500.00 ex. VAT)
Available - 14 Days
Picture Side Lift Mechanism
PICSIDE
The Picture Side Mechanism is a horizontal moving panel mechanism that conceals a flat screen TV behind a picture or panel. Ideal for when vertical height is not available, the Picture Side Mechanism drives a panel left or right to conceal and reveal the screen.
Quiet and smooth action with a 'ramped' start and finish motion profile
Surface mounted design for simplified installation
Vibration isolated components
Easy adjustment of mechanism end stops
Control Options RS232 / Contact Closure / IR (RF Available)
Depth Within Wall 80mm (3.14")
Finish (Custom Available) Satin Black Paint - RAL 9005
Max Travel of Panel PICSIDE1 - 1184mm (46.61") PICSIDE2 - 1435mm (56.49")
Max Weight of Panel 10kg (22lbs)
Movement Type Motorised
Power Consumption 110W
Power Consumption (Standby) 3W
Power Supply 240V or 110V
PICSIDE
The Picture Side Mechanism is a horizontal moving panel mechanism that conceals a flat screen TV behind a picture or panel. Ideal for when vertical height is not available, the Picture Side Mechanism drives a panel left or right to conceal and reveal the screen.
Quiet and smooth action with a 'ramped' start and finish motion profile
Surface mounted design for simplified installation
Vibration isolated components
Easy adjustment of mechanism end stops
Control Options RS232 / Contact Closure / IR (RF Available)
Depth Within Wall 80mm (3.14")
Finish (Custom Available) Satin Black Paint - RAL 9005
Max Travel of Panel PICSIDE1 - 1184mm (46.61") PICSIDE2 - 1435mm (56.49")
Max Weight of Panel 10kg (22lbs)
Movement Type Motorised
Power Consumption 110W
Power Consumption (Standby) 3W
Power Supply 240V or 110V
£2,500.00
