Living Control

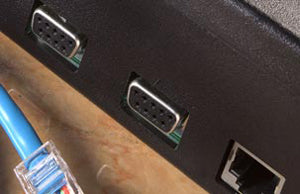

Living Control SmartRS
£117.44 inc. VAT
(£97.87 ex. VAT)
Available - 2-3 Days
Interface Allowing Two-Way RS232 control (i.e. AMX or Crestron). All CPUs
A Living Control multi-room system is controlled by either a DisplayPad or a VideoPad in many instances. The alternative Smart RS provides full operation by means of a serial control interface.
The Smart RS is a dedicated RS232 interface, capable of two-way communication between a Living Control CPU and any interface capable of generating and receiving ASCII commands.
It allows all Living Control systems to be controlled by touch-screen controllers, such as those made by AMX and Crestron.
As ASCII commands can access and control all sources in all zones, any interface utilising the Smart RS can be given full control of a system from one location.
SPECIFICATIONS
Overview: Serial Interface For All Living Control Systems
Applications: Use AMX / Crestron Or Similar Interface Units
Modes:
Bi-Directional
Zone Status & Title Feedback
CPU Connections:
1 x RJ45 Plugs Into Any Zone
1 x RJ45 Throughput To DisplayPad or VideoPad
Interface Connection: 1x 9 Pin D-Sub
A Living Control multi-room system is controlled by either a DisplayPad or a VideoPad in many instances. The alternative Smart RS provides full operation by means of a serial control interface.
The Smart RS is a dedicated RS232 interface, capable of two-way communication between a Living Control CPU and any interface capable of generating and receiving ASCII commands.
It allows all Living Control systems to be controlled by touch-screen controllers, such as those made by AMX and Crestron.
As ASCII commands can access and control all sources in all zones, any interface utilising the Smart RS can be given full control of a system from one location.
SPECIFICATIONS
Overview: Serial Interface For All Living Control Systems
Applications: Use AMX / Crestron Or Similar Interface Units
Modes:
Bi-Directional
Zone Status & Title Feedback
CPU Connections:
1 x RJ45 Plugs Into Any Zone
1 x RJ45 Throughput To DisplayPad or VideoPad
Interface Connection: 1x 9 Pin D-Sub
