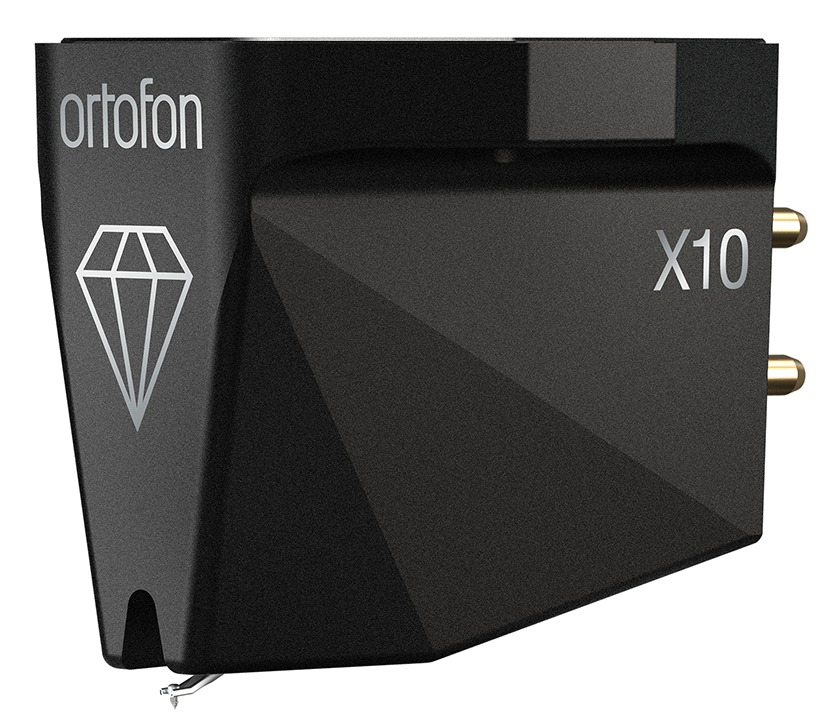

Ortofon MC X10

The MC X10 lays the foundation for high-fidelity sound. Its refined elliptical diamond stylus delivers clarity and precision, bringing your records to life with stunning detail. It's the perfect starting point for an exceptional audio journey.

• High price-to-performance ratio with a good all-round sound
• Overhead mounting cartridge for installing into a headshell
• Moving Coil cartridge design
• Elliptical diamond stylus

MC X10 Technology

The MC X10 features an Elliptical diamond profile, polished with precision to meet Ortofon’s renowned standards. Offering an impressive blend of clarity, musicality, and value, it’s a versatile performer suited to a wide range of systems and musical tastes.

MC X10 Sound

The MC X10 is a versatile cartridge that presents music with energy and finesse, blending lively detail with a smooth, natural character. Its broad appeal makes it a strong choice for those looking to experience the expressive potential of moving coil designs.

Specifications

• Output Voltage
  0.4 mV
• Channel Balance (@ 1000Hz)
  0.5 dB
• Channel Separation (@ 1000Hz)
  24 dB
• Frequency Response
  ± 2 dB
• Compliance, Dynamic, Lateral
  13 μm
• Stylus Type
  Tipped Elliptical
• Stylus Tip Radius (r/R)
  8 / 18 μm
• Recommended Tracking Force
  2.0 g
• Internal Impedance
  6 Ω
• Cantilever Material
  Aluminium Tube
• Coil Wire Material
  High-Purity Silver
• Recommended Load Impedance
  > 50 Ω
• Cartridge Weight
  8.6 g
