Ortofon

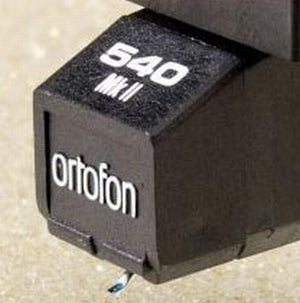

Ortofon Stylus 540 MKII
£290.00 inc. VAT
(£241.67 ex. VAT)
Available - 2-3 Days
Technical data
Frequency range 20-27.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 90 µm
Compliance, dynamic, lateral 30 µm/mN
Stylus type Nude FG 70
Stylus tip radius r/R 5/70 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Stylus colour Black
Recommended for following cartridges Series 540 Mkll, 540, 540 P
Frequency range 20-27.000 Hz
Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 90 µm
Compliance, dynamic, lateral 30 µm/mN
Stylus type Nude FG 70
Stylus tip radius r/R 5/70 µm
Equivalent stylus tip mass 0,3 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Stylus colour Black
Recommended for following cartridges Series 540 Mkll, 540, 540 P
£241.67
