Paradigm

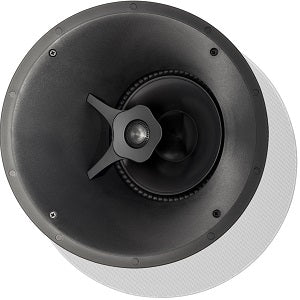

Paradigm CI Elite E80-A (E80A) In-Ceiling Speaker
£776.00 inc. VAT
(£646.67 ex. VAT)
Available - 7 Days
CI Elite E80-A
The Premium Custom Install Speaker.The CI Elite™ Series is Crafted in Canada and has all the technology advantages andgrille aesthetics of CI Pro™, plus oversized voice coils and X-PAL™ pure aluminum cone technologyfor the ultimate in sound performance.
◾In-ceiling round, 30°-Angled Guided Soundfield™ (optional square grille).
◾1" X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.
◾8" X-PAL™ brushed pure-aluminum bass/midrange driver with overmolded ART™ surround and die-cast aluminum chassis.
◾1.5" high-temp voice coil for high-power handling.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design: 2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield™ System, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Crossover: 3rd-order electro-acoustic at 2.0 kHz
Frequency Response On-Axis: ±3 dB from 60 Hz - 22 kHz
Frequency Response 30° Off-Axis: ±3 dB from 60 Hz - 18 kHz
High Frequency Driver: 1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver: 8" (20.3cm) X-PAL™ driver, overmolded Active Ridge Technology (ART™) surround, 1.5" high-temp voice coil, die-cast aluminum chassis
Low Frequency Extension: 39 Hz
Sensitivity Room / Anechoic: 94 dB / 90 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-160 W
Maximum Input Power: 100 W
Finishes: White, paintable grille, black speaker
Weight: 9 lbs. (4.1 kg)
Overall Dimensions: 12.625" (32.1cm) Diameter 6.375" (16.2cm) Depth
Cut-Out Dimensions: 11.4375" (29.1cm) Diameter
Minimum Mounting Depth:5.75" (14.6cm) Depth required is the distance between 1/2" drywall, or similar material.
The Premium Custom Install Speaker.The CI Elite™ Series is Crafted in Canada and has all the technology advantages andgrille aesthetics of CI Pro™, plus oversized voice coils and X-PAL™ pure aluminum cone technologyfor the ultimate in sound performance.
◾In-ceiling round, 30°-Angled Guided Soundfield™ (optional square grille).
◾1" X-PAL™ tweeter with exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology.
◾8" X-PAL™ brushed pure-aluminum bass/midrange driver with overmolded ART™ surround and die-cast aluminum chassis.
◾1.5" high-temp voice coil for high-power handling.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design: 2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield™ System, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Crossover: 3rd-order electro-acoustic at 2.0 kHz
Frequency Response On-Axis: ±3 dB from 60 Hz - 22 kHz
Frequency Response 30° Off-Axis: ±3 dB from 60 Hz - 18 kHz
High Frequency Driver: 1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver: 8" (20.3cm) X-PAL™ driver, overmolded Active Ridge Technology (ART™) surround, 1.5" high-temp voice coil, die-cast aluminum chassis
Low Frequency Extension: 39 Hz
Sensitivity Room / Anechoic: 94 dB / 90 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-160 W
Maximum Input Power: 100 W
Finishes: White, paintable grille, black speaker
Weight: 9 lbs. (4.1 kg)
Overall Dimensions: 12.625" (32.1cm) Diameter 6.375" (16.2cm) Depth
Cut-Out Dimensions: 11.4375" (29.1cm) Diameter
Minimum Mounting Depth:5.75" (14.6cm) Depth required is the distance between 1/2" drywall, or similar material.
£646.67
