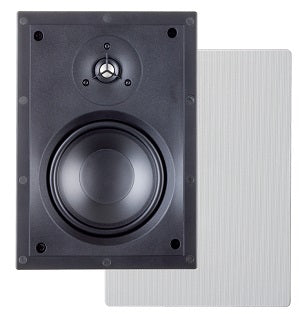

Paradigm CI Home H55-IW (H55IW) In-Wall Speaker

CI Home H55-IW

◾In-wall applications.
◾3/4" PTD™ dome tweeter.
◾5.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.

Technical Specifications:-

Design: 2-driver, 2-way in-wall, ABS chassis & mounting clamps
Crossover: 2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis: ±2 dB from 75 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 75 Hz - 18 kHz
High Frequency Driver: 3/4" (1.9cm) PTD™ dome
Mid/Bass Frequency Driver: 5.5" (14cm) mineral-filled polypropylene cone
Low Frequency Extension: 60 Hz
Sensitivity Room / Anechoic: 88 dB / 84 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-80 W
Maximum Input Power: 50 W
Finishes: White, paintable grille
Weight: 2.5 lbs. (1.2 kg)
Overall Dimensions:
10.25" (26.0cm) Height
7.125" (18.1cm) Width
3.375" (8.6cm) Depth

Cut-Out Dimensions:
9.1875" (23.3cm) Height
6.125" (15.6cm) Width

Minimum Mounting Depth 2.75" (7.0cm)
Depth required is the distance
between 1/2" drywall, or similar material.
