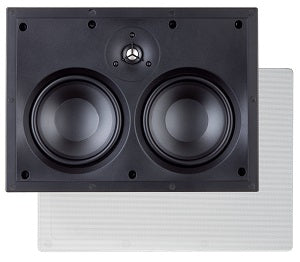

Paradigm CI Home H55-LCR (H55LCR) In-Wall Speaker

CI Home H55-LCR

◾In-wall left / center / right applications.
◾3/4" PTD™ dome tweeter.
◾Dual 5.5" mineral-filled polypropylene bass/midrange drivers with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.

Technical Specifications:-

Design: 3-driver, 2-way in-wall left/center/right, ABS chassis & mounting clamps
Crossover: 2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis: ±2 dB from 75 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 75 Hz - 18 kHz
High Frequency Driver: 3/4" (1.9cm) PTD™ dome
Midrange Frequency Driver: Two 5.5" (14cm) mineral-filled polypropylene cones
Low Frequency Extension: 60 Hz
Sensitivity Room / Anechoic: 89 dB / 85 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-100 W
Maximum Input Power: 70 W
Finishes: White, paintable grille
Weight: 5.9 lbs. (2.7 kg)
Overall Dimensions:
12.625" (32.1cm) Height
9.25" (23.5cm) Width
3.5" (8.9cm) Depth

Cut-Out Dimensions:
8.25" (21.0cm) Height
11.625" (29.5cm) Width

Minimum Mounting Depth: 2.75" (7.0cm)
Depth required is the distance between 1/2" drywall, or similar material.
