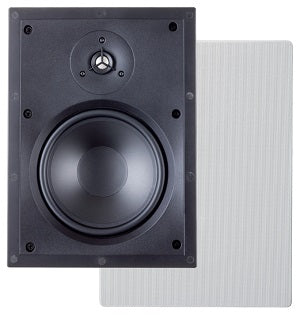

Paradigm CI Home H65-IW (H65IW) In-Wall Speaker

CI Home H65-IW

◾In-wall applications.
◾3/4" PTD™ dome tweeter.
◾6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.

Technical Specifications:-

Design: 2-driver, 2-way in-wall, ABS chassis & mounting clamps
Crossover: 2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis: ±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 70 Hz - 18 kHz
High Frequency Driver: 3/4" (1.9cm) PTD™ dome
Mid/Bass Frequency Driver: 6.5" (16.5cm) mineral-filled polypropylene cone
Low Frequency Extension: 55 Hz
Sensitivity Room / Anechoic: 89 dB / 85 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-90 W
Maximum Input Power: 60 W
Finishes: White, paintable grille
Weight: 3.5 lbs. (1.6 kg)
Overall Dimensions:
11.125" (28.3cm) Height
8.125" (20.6cm) Width
3.375" (8.6cm) Depth

Cut-Out Dimensions:
10.125" (25.7cm) Height
7.0625" (17.9cm) Width

Minimum Mounting Depth: 2.75" (7.0cm)
Depth required is the distance between 1/2" drywall, or similar material.
