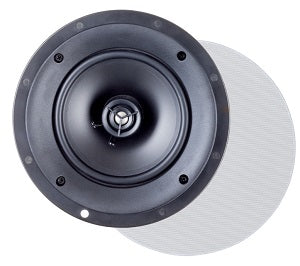

Paradigm CI Home H65-R (H65R) In Ceiling Speaker

CI Home H65-R

◾In-ceiling round (optional square grille).
◾3/4" PTD™ dome tweeter.
◾6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.

Technical Specifications:-
Design: 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover: 2nd-order electro-acoustic at 3.0 kHz
Frequency Response On-Axis: ±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 70 Hz - 18 kHz
High Frequency Driver: 3/4" (1.9cm) PTD™ dome
Mid/Bass Frequency Driver: 6.5" (16.5cm) mineral-filled polypropylene cone
Low Frequency Extension: 55 Hz
Sensitivity Room / Anechoic: 89 dB / 85 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-80 W
Maximum Input Power: 50 W
Finishes: White, paintable grille
Weight: 3.5 lbs. (1.6 kg)
Overall Dimensions: 8.75" (22.2cm) Diameter 3.625" (9.2cm) Depth
Cut-Out Dimensions: 7.75" (19.7cm) Diameter
Minimum Mounting Depth: 3" (7.6cm)
Depth required is the distance between 1/2" drywall, or similar material.
