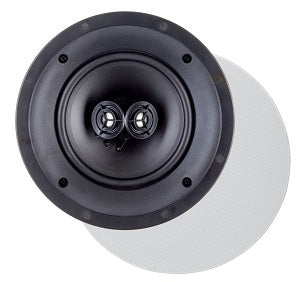

Paradigm CI Home H65-SM (H65SM) In-Ceiling Speaker
£263.00 inc. VAT
(£219.17 ex. VAT)
Available - 2-3 Days
CI Home H65-SM
◾In-ceiling round, Dual-Directional Soundfield™ (optional square grille).
◾Dual 3/4" PTD™ dome tweeters.
◾6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design: 3-driver, 2 x 2-way in-ceiling, switchable stereo/mono, ABS chassis & mounting clamps
Crossover: Two 2nd-order electro-acoustic at 3.0 kHz
Frequency Response On-Axis: ±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 70 Hz - 15 kHz
High Frequency Driver: Two 3/4" (1.9cm) PTD™ domes
Mid/Bass Frequency Driver: 6.5" (16.5cm) mineral-filled polypropylene cone, dual voice-coil
Low Frequency Extension: 52 Hz
Sensitivity Room / Anechoic: 89 dB / 85 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-80W Mono / 15-40 W/Channel Stereo
Maximum Input Power: 100 W Mono / 50 W Stereo
Finishes: White, paintable grille
Weight: 4 lbs. (1.8 kg)
Overall Dimensions: 8.75" (22.2cm) Diameter 3.625" (9.2cm) Depth
Cut-Out Dimensions: 7.75" (19.7cm) Diameter
Minimum Mounting Depth: 3" (7.6cm)
Depth required is the distance between 1/2" drywall, or similar material.
◾In-ceiling round, Dual-Directional Soundfield™ (optional square grille).
◾Dual 3/4" PTD™ dome tweeters.
◾6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design: 3-driver, 2 x 2-way in-ceiling, switchable stereo/mono, ABS chassis & mounting clamps
Crossover: Two 2nd-order electro-acoustic at 3.0 kHz
Frequency Response On-Axis: ±2 dB from 70 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 70 Hz - 15 kHz
High Frequency Driver: Two 3/4" (1.9cm) PTD™ domes
Mid/Bass Frequency Driver: 6.5" (16.5cm) mineral-filled polypropylene cone, dual voice-coil
Low Frequency Extension: 52 Hz
Sensitivity Room / Anechoic: 89 dB / 85 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-80W Mono / 15-40 W/Channel Stereo
Maximum Input Power: 100 W Mono / 50 W Stereo
Finishes: White, paintable grille
Weight: 4 lbs. (1.8 kg)
Overall Dimensions: 8.75" (22.2cm) Diameter 3.625" (9.2cm) Depth
Cut-Out Dimensions: 7.75" (19.7cm) Diameter
Minimum Mounting Depth: 3" (7.6cm)
Depth required is the distance between 1/2" drywall, or similar material.
