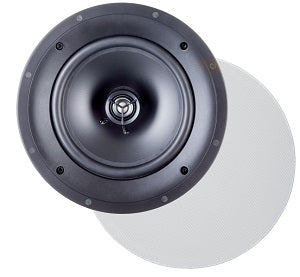

Paradigm CI Home H80-R (H80R) In Ceiling Speaker
£271.00 inc. VAT
(£225.83 ex. VAT)
Available - 2-3 Days
CI Home H80-R
◾In-ceiling round (optional square grille).
◾1" PTD™ dome tweeter.
◾8" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design: 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover: 2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis: ±2 dB from 60 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 60 Hz - 18 kHz
High Frequency Driver: 1" (2.5cm) PTD™ dome
Mid/Bass Frequency Driver: 8" (20.3cm) mineral-filled polypropylene cone
Low Frequency Extension: 45 Hz
Sensitivity Room / Anechoic: 90 dB / 86 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-90 W
Maximum Input Power: 60 W
Finishes: White, paintable grille
Weight: 4.4 lbs. (2 kg)
Overall Dimensions: 10.375" (26.4cm) Diameter 4" (10.2cm) Depth
Cut-Out Dimensions: 9.375" (23.8cm) Diameter
Minimum Mounting Depth 3.375" (8.6cm)
Depth required is the distance between 1/2" drywall, or similar material.
◾In-ceiling round (optional square grille).
◾1" PTD™ dome tweeter.
◾8" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
◾Bezel-Free Micro-Perf Grille.
Technical Specifications:-
Design: 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
Crossover: 2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis: ±2 dB from 60 Hz - 20 kHz
Frequency Response 30° Off-Axis: ±2 dB from 60 Hz - 18 kHz
High Frequency Driver: 1" (2.5cm) PTD™ dome
Mid/Bass Frequency Driver: 8" (20.3cm) mineral-filled polypropylene cone
Low Frequency Extension: 45 Hz
Sensitivity Room / Anechoic: 90 dB / 86 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-90 W
Maximum Input Power: 60 W
Finishes: White, paintable grille
Weight: 4.4 lbs. (2 kg)
Overall Dimensions: 10.375" (26.4cm) Diameter 4" (10.2cm) Depth
Cut-Out Dimensions: 9.375" (23.8cm) Diameter
Minimum Mounting Depth 3.375" (8.6cm)
Depth required is the distance between 1/2" drywall, or similar material.
