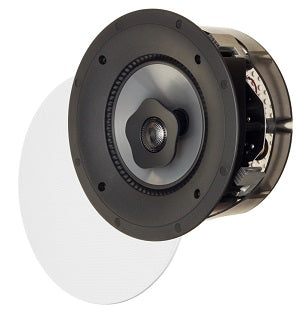

Paradigm CI PRO P65-RX (P65RX) In Ceiling Speaker

CI PRO P65-R MARINE APPLICATION SPEAKERS

Excessive moisture, corrosive salt spray, harsh UV rays and general temperature fluctuations all call for an extreme speaker; a custom install speaker designed expressly for environments where excessive moisture is an issue.

Quick Specs:
◾Santoprene Thermoplastic Elastomer surrounds
◾E-Coated Corrosion-resistant chassis and clamps
◾Conformal Coating on PCB’s and Crossover
◾Stainless-steel Micro-Perf Grille
◾Weather-resistant rubber ring with grommets secures grille to speaker
◾Stainless Steel Screws and springs

Technical Specifications:-

Design: 2-driver, 2-way in-ceiling, SHOCK-MOUNT™ Isolation Mounting System, nylon-blended rigid baffle
Crossover: 2nd-order electro-acoustic at 2.5 kHz
Frequency Response On-Axis: ±3 dB from 75 Hz - 22 kHz
Frequency Response 30° Off-Axis: ±3 dB from 75 Hz - 18 kHz
High Frequency Driver: 1" (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens
Mid/Bass Frequency Driver: 6.5" (16.5cm) mineral-filled polypropylene cone, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis
Low Frequency Extension: 41 Hz
Sensitivity Room / Anechoic: 91.5 dB / 87.5 dB
Impedance: Compatible with 8 ohms
Suitable Amplifier Power Range: 15-100 W
Maximum Input Power: 80 W
Finishes: White, paintable grille, black/grey speaker
Weight: 5.7 lbs. (2.6 kg)
Overall Dimensions: 8.875" (22.5cm) Diameter 4.25" (10.8cm) Depth
Cut-Out Dimensions: 7.75" (19.7cm) Diameter
Minimum Mounting Depth: 4" (10.2cm)
Depth required is the distance between 1/2" drywall, or similar material.
