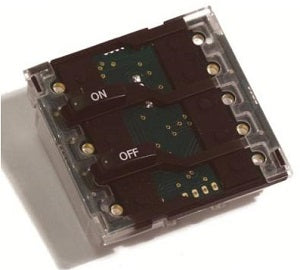

Rako RCM-020 - 2 Button Modular Control Panel
£152.50 inc. VAT
(£127.08 ex. VAT)
Available - 2-3 Days
A wireless 2 button, push button
control module that has several
fixing options.
Lithium battery powered so can be mounted anywhere without having to run cabling. The unit provides full scene programming.
Based upon the widely used 50x50mm Euro Module switch plate accessory standard.
Rako flat plate and screwless switch plate kits are available in a selection of finishes including: Brushed Stainless Steel Mirrored Stainless Steel Polished Brass White Metal Black Nickel* White Plastic
The RCM020 push button control module comes pre-configured for scene 1 and off. The wall plate controllers are designed to be mounted anywhere, be it flush mounting to UK back-boxes or simply surface mounted to any flat surface using the pattress provided**. It is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement. Rakom coded radio transmission eliminates the need for any data or power cabling ensuring that the system can be installed with minimum fuss and disruption.
Specifications:-
dimensions 50x50x12mm - flush mount 92x92x14mm - surface mount
fixing Flush mounting into standard UK single gang back box, minimum 12mm deep. Surface mounting on standard single gang UK or European back box or direct to flat surface.
input supply 6V DC - 2x 3V Lithium coin cell CR2016 (remote power supply version available)
weight 100g
battery Life Greater than 3 years
climate range Temperature +2C to +40C Humidity +5% to 90% non condensing
standards Emissions - EN61000-6-3 : 2001 Immunity - EN61000-6-1 : 2001
communication Rakom coded fm radio, 433.9MHz
Lithium battery powered so can be mounted anywhere without having to run cabling. The unit provides full scene programming.
Based upon the widely used 50x50mm Euro Module switch plate accessory standard.
Rako flat plate and screwless switch plate kits are available in a selection of finishes including: Brushed Stainless Steel Mirrored Stainless Steel Polished Brass White Metal Black Nickel* White Plastic
The RCM020 push button control module comes pre-configured for scene 1 and off. The wall plate controllers are designed to be mounted anywhere, be it flush mounting to UK back-boxes or simply surface mounted to any flat surface using the pattress provided**. It is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement. Rakom coded radio transmission eliminates the need for any data or power cabling ensuring that the system can be installed with minimum fuss and disruption.
Specifications:-
dimensions 50x50x12mm - flush mount 92x92x14mm - surface mount
fixing Flush mounting into standard UK single gang back box, minimum 12mm deep. Surface mounting on standard single gang UK or European back box or direct to flat surface.
input supply 6V DC - 2x 3V Lithium coin cell CR2016 (remote power supply version available)
weight 100g
battery Life Greater than 3 years
climate range Temperature +2C to +40C Humidity +5% to 90% non condensing
standards Emissions - EN61000-6-3 : 2001 Immunity - EN61000-6-1 : 2001
communication Rakom coded fm radio, 433.9MHz
£127.08
