Rako

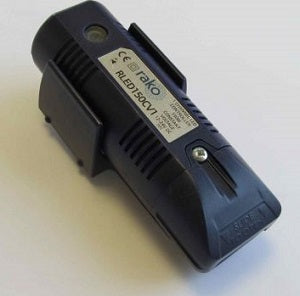

Rako RLED150CV1 Wireless 150W Constant Voltage LED Dimmer
£223.00 inc. VAT
(£185.83 ex. VAT)
Available - 2-3 Days
A compact single channel
150W constant voltage LED
dimmer with in-built RF receiver
and Rako processor for control
of single channel constant
Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units.
Designed for use with single channel constant voltage LED fittings and single channel LED tape light.
Maximum wattage of 150w for 12V d.c. fittings or 300w for 24V d.c. fittings. Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a nondimming application).
Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus16 preset scene levels in non volatile memory.
The RLED150CV1 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Specifications:-
dimensions 138x46x40mm
input supply 12 or 24vDC
weight 107g
housing UL V0 ABS
climate range Temperature +2C to +40C Humidity +5% to 95% non condensing
connections 2 way screw terminals for 12-24v d.c. supply. 4 way screw terminals for load connections.
protection Reverse polarity input protection. Output current limit protection.
load types Single channel constant voltage LED fittings and tapelight.
minimum load 1w
maximum load 150w @ 12v d.c. 300w @ 24v d.c.
terminal sizes 4mm2
standards Emissions - EN61000-6-3 : 2001 Immunity - EN61000-6-1 : 2001
communication Rakom coded fm radio, 433.9MHz
memory Flash memory non volatile
Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units.
Designed for use with single channel constant voltage LED fittings and single channel LED tape light.
Maximum wattage of 150w for 12V d.c. fittings or 300w for 24V d.c. fittings. Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a nondimming application).
Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus16 preset scene levels in non volatile memory.
The RLED150CV1 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Specifications:-
dimensions 138x46x40mm
input supply 12 or 24vDC
weight 107g
housing UL V0 ABS
climate range Temperature +2C to +40C Humidity +5% to 95% non condensing
connections 2 way screw terminals for 12-24v d.c. supply. 4 way screw terminals for load connections.
protection Reverse polarity input protection. Output current limit protection.
load types Single channel constant voltage LED fittings and tapelight.
minimum load 1w
maximum load 150w @ 12v d.c. 300w @ 24v d.c.
terminal sizes 4mm2
standards Emissions - EN61000-6-3 : 2001 Immunity - EN61000-6-1 : 2001
communication Rakom coded fm radio, 433.9MHz
memory Flash memory non volatile
£185.83
