Rako

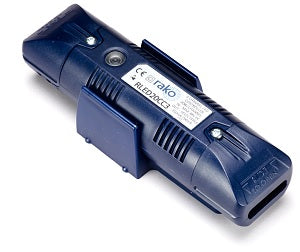

Rako RLED20CC3
£177.60 inc. VAT
(£148.00 ex. VAT)
Available - 2-3 Days
The RLED20CC3 is a wireless (RGB) 20w/channel
constant current dimimg LED driver, suitable for ceiling
or cupboard mounting.
Designed for use with 3 channel constant current LED fittings. Maximum wattage of 20w with a forward voltage range of 3-45V (equates to 13 x 1w LEDs per channel). Requires a suitable external d.c. power supply such as the Rako RAPSU48. Selectable current ratings of 350, 500, 600 and 700mA via jumper connectors.
Programmed using either an RCM RF wallplate or the RASOFT software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
v The RLED20CC3 dimmer can be controlled from any Rako transmitter such as RCM wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Technical Specifications:-
dimensions: 172x46x40mm
input supply: 48V DC max
weight: 178g
housing: UL V0 ABS
climate range: Temperature +2C to +40C Humidity +5% to 95% non condensing
connections: 4 way terminals for d.c. supply 6 way screw terminals for load connections.
protection: Reverse polarity input protection.
load types: 3 Channel Constant Current LED Fittings
minimum load: 3w
maximum load: 20w/channel
terminal sizes: 4mm2
standards: Emissions - EN61000-6-3 : 2007 Immunity - EN61000-6-1 : 2007
communication: Rakom coded fm radio, 433.9MHz
memory: Flash memory (non volatile)
Designed for use with 3 channel constant current LED fittings. Maximum wattage of 20w with a forward voltage range of 3-45V (equates to 13 x 1w LEDs per channel). Requires a suitable external d.c. power supply such as the Rako RAPSU48. Selectable current ratings of 350, 500, 600 and 700mA via jumper connectors.
Programmed using either an RCM RF wallplate or the RASOFT software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
v The RLED20CC3 dimmer can be controlled from any Rako transmitter such as RCM wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Technical Specifications:-
dimensions: 172x46x40mm
input supply: 48V DC max
weight: 178g
housing: UL V0 ABS
climate range: Temperature +2C to +40C Humidity +5% to 95% non condensing
connections: 4 way terminals for d.c. supply 6 way screw terminals for load connections.
protection: Reverse polarity input protection.
load types: 3 Channel Constant Current LED Fittings
minimum load: 3w
maximum load: 20w/channel
terminal sizes: 4mm2
standards: Emissions - EN61000-6-3 : 2007 Immunity - EN61000-6-1 : 2007
communication: Rakom coded fm radio, 433.9MHz
memory: Flash memory (non volatile)
£148.00
