Rako

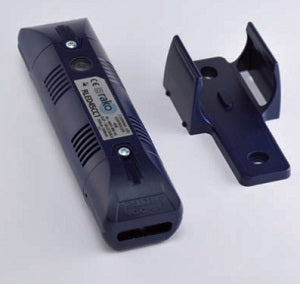

Rako RLED45CCI - Wireless 45w constant current dimming module
£151.20 inc. VAT
(£126.00 ex. VAT)
Available - 2-3 Days
The RLED45CC1 is a wireless 45w constant current
dimming LED module, suitable for ceiling or cupboard
mounting.
Designed to fit through a ceiling cut-out of 50mm diameter or greater the RLED45CC1 is fed from a suitable DC power supply to provide an adequate forward voltage. The RAPSU48 is recommended.
The unit can also be used for exterior lighting control applications with the use of a weatherproof IP rated enclosure.
Programmed using either an RCM RF wallplate or the RASOFT software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
v The RLED45CC1 dimmer can be controlled from any Rako transmitter such as RCM wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Technical Specifications:-v dimensions: 172x46x40mm
input supply: 48V DC max
weight: 177gv housing: UL V0 ABS
climate range: Temperature +2C to +40C Humidity +5% to 95% non condensing
connections: 4 way screw terminals for supply 2 way screw terminals for load connections.
load types: Constant Current LED Fittings
minimum load: 1w
maximum load: 45w
terminal sizes: 4mm2
standards: Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
communication: Rakom coded fm radio, 433.9MHz
memory: Flash memory (non volatile)
Designed to fit through a ceiling cut-out of 50mm diameter or greater the RLED45CC1 is fed from a suitable DC power supply to provide an adequate forward voltage. The RAPSU48 is recommended.
The unit can also be used for exterior lighting control applications with the use of a weatherproof IP rated enclosure.
Programmed using either an RCM RF wallplate or the RASOFT software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
v The RLED45CC1 dimmer can be controlled from any Rako transmitter such as RCM wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Technical Specifications:-v dimensions: 172x46x40mm
input supply: 48V DC max
weight: 177gv housing: UL V0 ABS
climate range: Temperature +2C to +40C Humidity +5% to 95% non condensing
connections: 4 way screw terminals for supply 2 way screw terminals for load connections.
load types: Constant Current LED Fittings
minimum load: 1w
maximum load: 45w
terminal sizes: 4mm2
standards: Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
communication: Rakom coded fm radio, 433.9MHz
memory: Flash memory (non volatile)
£126.00
