Rako

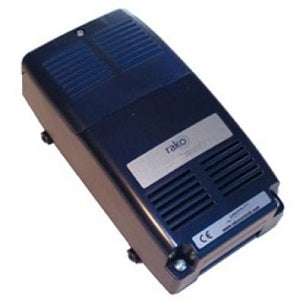

Rako RML-1200 (RML1200) 1200w ceiling mount dimmer external aerial
£231.60 inc. VAT
(£193.00 ex. VAT)
Available - 2-3 Days
RML1200 - 1200VA LEADING EDGE DIMMER
The RML1200 in-line RF dimmer for Tungsten, Low Voltage Halogen and other leading edge dimmable loads
WHAT IS IT?
A compact 1200w RF dimmer designed to be mounted in a ceiling void using an access panel or wall mounted in an electrical cupboard.
The dimmer is connected in-line before the first light fitting, to enable dimming of up to 1200w of leading edge dimmable loads.
Controlled from any Rako Rakom RF device, for example the RCM/RCP push button RF wall plate.
FLEXIBLE CONTROL
Designed to fit in a ceiling void using an access panel or an electrical cupboard, the RML1200 inductive dimmer can control up to 1200 watts of mains dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.
With protection features such as field replaceable fuse, overtemperature and voltage surge protection.
v Programmed using either an RCP/RCM RF wallplate or the RASOFT PC software suite, the unit stores the House, Room and Channel address plus 16 preset scene levels in non volatile memory. The RML1200 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds, Bridge modules and forms the foundation of any Rako scene-set system.
Technical Specifications:-
Dimensions: 190x105x66mm
Input supply: 230V AC +/-10% 50Hz
Weight: 555g
Housing: ULV0 ABS
Climate Range: Temperature +2C to +40C, Humidity +5% to 95% non condensing
Connections: 3 way screw terminals for mains power
Protection: Replaceable fuse protection Auto thermal shutdown Voltage surge protection
Load types: Incandescent mains voltage lamps Leading edge dimmable transformers Leading edge dimmable cold cathode
Minimum load: 20w
Maximum load: 1200VA
Terminal sizes: 2.5mm2 - Stranded 4.0mm2 - Solid
Cable entry: Bottom
Standards: Emissions - EN61000-6-3 : 2001 Immunity - EN61000-6-1 : 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
The RML1200 in-line RF dimmer for Tungsten, Low Voltage Halogen and other leading edge dimmable loads
WHAT IS IT?
A compact 1200w RF dimmer designed to be mounted in a ceiling void using an access panel or wall mounted in an electrical cupboard.
The dimmer is connected in-line before the first light fitting, to enable dimming of up to 1200w of leading edge dimmable loads.
Controlled from any Rako Rakom RF device, for example the RCM/RCP push button RF wall plate.
FLEXIBLE CONTROL
Designed to fit in a ceiling void using an access panel or an electrical cupboard, the RML1200 inductive dimmer can control up to 1200 watts of mains dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.
With protection features such as field replaceable fuse, overtemperature and voltage surge protection.
v Programmed using either an RCP/RCM RF wallplate or the RASOFT PC software suite, the unit stores the House, Room and Channel address plus 16 preset scene levels in non volatile memory. The RML1200 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds, Bridge modules and forms the foundation of any Rako scene-set system.
Technical Specifications:-
Dimensions: 190x105x66mm
Input supply: 230V AC +/-10% 50Hz
Weight: 555g
Housing: ULV0 ABS
Climate Range: Temperature +2C to +40C, Humidity +5% to 95% non condensing
Connections: 3 way screw terminals for mains power
Protection: Replaceable fuse protection Auto thermal shutdown Voltage surge protection
Load types: Incandescent mains voltage lamps Leading edge dimmable transformers Leading edge dimmable cold cathode
Minimum load: 20w
Maximum load: 1200VA
Terminal sizes: 2.5mm2 - Stranded 4.0mm2 - Solid
Cable entry: Bottom
Standards: Emissions - EN61000-6-3 : 2001 Immunity - EN61000-6-1 : 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
£193.00
