Rako
Rako RMR-VF (RMRVF)
£226.80 inc. VAT
(£189.00 ex. VAT)
Available - 2-3 Days

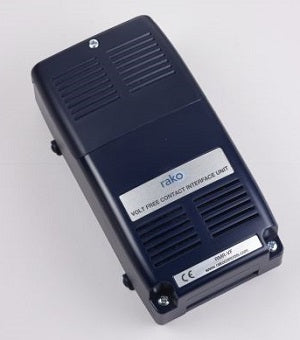

The RMR-VF is an interface unit to convert volt-free
contact signals into Rako wireless RAKOM messages.
The RMR-VF accepts up to 10 volt-free inputs which can be used to trigger multiple scenes within a single room or separate commands in different rooms. Commands can be scenes, fades, levels or multiple actions depending on the duration of the contact closure.
The RMR-VF can be addressed manually to a single Rako Room and inputs will trigger basic scenes within that Room. Rasoft Pro is required (with a suitable programming interface e.g. RABridge) to map commands to different or multiple rooms and action advanced functions such as Level, Press and Hold and Trigger on Release.
Note: The RMR-VF is not intended for use with PIR or other presence sensors. For these sensors the RAMVR should be used – contact Rako's technical helpline for more information.
v Technical Specifications:-
Dimensions: 190x105x66mm
Input supply: 9-12V DC from SELV power supply unit (included)
Weight: 340g
Housing: UL V0 ABS
Climate range: Temperature +2C to +40C Humidity +5% to 95% non condensing
Standards: Emissions - EN61000-6-3 : 2007 Immunity - EN61000-6-1 : 2007 LVD - EN 60950-1 :2006
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
The RMR-VF accepts up to 10 volt-free inputs which can be used to trigger multiple scenes within a single room or separate commands in different rooms. Commands can be scenes, fades, levels or multiple actions depending on the duration of the contact closure.
The RMR-VF can be addressed manually to a single Rako Room and inputs will trigger basic scenes within that Room. Rasoft Pro is required (with a suitable programming interface e.g. RABridge) to map commands to different or multiple rooms and action advanced functions such as Level, Press and Hold and Trigger on Release.
Note: The RMR-VF is not intended for use with PIR or other presence sensors. For these sensors the RAMVR should be used – contact Rako's technical helpline for more information.
v Technical Specifications:-
Dimensions: 190x105x66mm
Input supply: 9-12V DC from SELV power supply unit (included)
Weight: 340g
Housing: UL V0 ABS
Climate range: Temperature +2C to +40C Humidity +5% to 95% non condensing
Standards: Emissions - EN61000-6-3 : 2007 Immunity - EN61000-6-1 : 2007 LVD - EN 60950-1 :2006
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
£189.00
