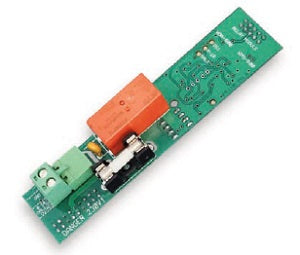

Rako WDA-600 (WDA600) 600W Digital Dimming Unit for use with RAK8-MB
£112.80 inc. VAT
(£94.00 ex. VAT)
Available - 2-3 Days
The WDA-600 pluggable module is for use with 0-
10V, DSI and DALI dimmable ballasts.
WHAT IS IT?
The WDA-600 is a pluggable universal 0-10v, DSI & DALI digital dimmer for use with RAK8-MB.
The unit is plugged directly into one of the slots on the RAK8- MB.
Features both digital control output for 0-10V, DSI and DALI and a switched mains output for up to 600VA of fittings.
v The WDA-600 combines with the RAK8-MB to provide a centralised lighting control system that can integrate with either wireless or wired Rako products.
The control signal output type (0-10V/DSI/DALI) is selectable via the Rasoft Pro software. The selected output is indicated by an LED on the pluggable module.
Switched mains output comes from the channel output on the RAK8-MB, digital outputs are from a pluggable terminal block on the daughterboard itself.
As with all RAK8 pluggable modules no memory is stored on the WDA- 600. All programming is stored on the motherboard meaning the WDA- 600 can be swapped with any other module without the need to be reprogrammed.
Technical Specifications:-
Dimensions: 115x25x24mm
Maximum loading: 600W
Minimum loading: 1W
Weight: 55g
Climate range: Temperature +2C to +40C
Humidity +5% to 95% non condensing
Standards: Emissions - EN61000-6-3 : 2001 Immunity - EN61000-6-1 : 2001
Communication: RS485 to other RAKs, RX-Link and RAK-Link
Connections: Pluggable module
