Rako
Rako WMS-600 (WMS600) 600W Switching Module for use with RAK8-MB
£96.00 inc. VAT
(£80.00 ex. VAT)
Available - 2-3 Days
WHAT IS IT?

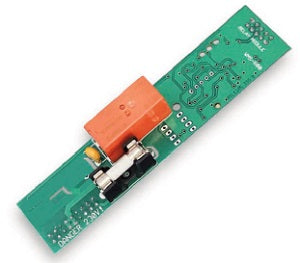

The WMS-600 is a pluggable switching module to be used with the RAK8-MB.
The unit is plugged directly into one of the slots on the RAK8-MB.
The WMS-600 is for use with non dimmable lighting loads, extractor fans or any other switched mains output applications.
The WMS-600 combines with the RAK8-MB to provide a centralised lighting control system that can integrate with either wireless or wired Rako products.
As with all RAK8 pluggable modules no memory is stored on the WMS-600. All programming is stored on the motherboard meaning the WMS- 600 can be swapped with any other module without the need to be reprogrammed
Technical Specifications:-
dimensions 115x25x24mm
maximum loading 600W
minimum loading 1W
Weight 55g
climate range Temperature +2C to +40C Humidity +5% to 95% non condensing
standards Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
communication RS485 to other RAKs, RX-Link and RAK-Link
connections Pluggable module
The WMS-600 is a pluggable switching module to be used with the RAK8-MB.
The unit is plugged directly into one of the slots on the RAK8-MB.
The WMS-600 is for use with non dimmable lighting loads, extractor fans or any other switched mains output applications.
The WMS-600 combines with the RAK8-MB to provide a centralised lighting control system that can integrate with either wireless or wired Rako products.
As with all RAK8 pluggable modules no memory is stored on the WMS-600. All programming is stored on the motherboard meaning the WMS- 600 can be swapped with any other module without the need to be reprogrammed
Technical Specifications:-
dimensions 115x25x24mm
maximum loading 600W
minimum loading 1W
Weight 55g
climate range Temperature +2C to +40C Humidity +5% to 95% non condensing
standards Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
communication RS485 to other RAKs, RX-Link and RAK-Link
connections Pluggable module
£80.00
