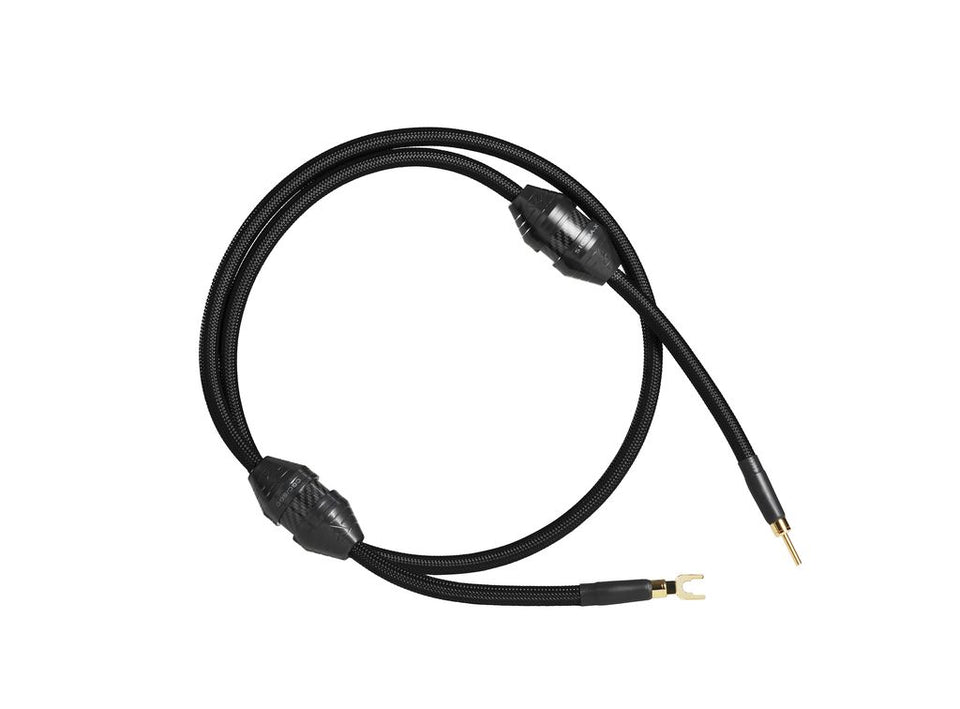

Shunyata Sigma-X Ground Cable
Sigma-X ground cables feature our highly consequential TAPc (Transverse Axial Polarizer) and CMode (Common Mode noise reduction) filter modules — patent-pending technologies that encircle the conductors to dissipate EMI and RF noise. The result is greater harmonic detail, dimensional imaging, and a more grounded sense of weight and scale. This technological advancement, plus 6-gauge VTX-Ag conductors, allow instruments and vocals take on a vivid, physical presence, while nuanced textures emerge from an exceptionally silent background — deepening the listener’s connection to the music and performance.
TECHNOLOGY
ArNi® is a type of wire created by Shunyata Research designed to be the finest quality wire available for audio purposes. It begins with the highest purity of copper available – OFE C10100 or Ohno (single crystal). Then it is formed in virtual hollow tubes eliminating skin effects and eddy current distortions. A premium fluorocarbon insulation minimizes dielectric absorption and re-radiation, greatly improving resolution and clarity. In addition, the wire undergoes our proprietary KPIP™ process.
TAPc (Transverse Axial Polarizer) is a patent-pending technology that couples to the electromagnetic fields surrounding electrical or signal conductors. TAPc behaves like a polarizer, passively reducing electromagnetic distortion that presents as a type of glare on sound or images.
The sonic impact of TAPc is unmistakable. There is a profound drop in perceived noise floor, effortlessly portrayed dynamics and an immediate improvement in the rendering of timing and coherency in sound. These performance elements are unique to TAPc and remain unaddressed by competing technologies of any kind. Even casual listeners can recognize the effect TAPc has upon first listen. Results are consistent across a wide range of components and systems. Essentially, the TAPc modules act as force multipliers, elevating the listening experience to levels many would not have thought possible.
Common-mode noise is different than differential noise and is much more difficult to measure and eliminate. For the purest signal possible, Shunyata Research has developed a CMode filter that effectively reduces common-mode noise without introducing the sonic compression effects associated with conventional filters. It reduces high-frequency noise distortion while delivering an analog ease and palpable background silence that closes the gap between digital and analog systems.
Shunyata’s VTX-Ag cables are uniquely constructed with both an inner, center conductor made of pure silver and an outer concentric ring conductor made of pure copper. It’s made using the finest fluorocarbon insulation to minimize dielectric absorption and re-radiation which translates to an improvement in resolution and clarity. VTX-Ag delivers the speed and clarity of silver and the midrange warmth and three dimensional power in the lower octaves of copper without imparting any of the negatives associated with either metal. – The best qualities of silver and copper combined
Shunyata Research's STIS™ v3 is the most evolved interchangeable terminal system in existence due to their performance and ease of use. The STIS v3 interchangeable banana and spade terminals are culled from solid tellurian copper for the ultimate in connectivity, then plated with pure gold to protect the copper for a lifetime of trouble free operation. In terms of performance and ease of use. STISv3 offers all the performance of fixed connectors yet delivers endless flexibility by allowing the end user to change connectors on the fly based on the system and connections being used.
Shunyata Research uses only the highest purity of copper available for the production of its wire products. OFE Alloy 101 or C10100 is the highest grade of copper with a minimum 99.99% purity and a conductivity rating of 101% IACS. OFE stands for oxygen-free electrolytic and supersedes the term OFHC (oxygen-free high conductivity). C10100 is the only grade of copper that comes with a written certification of purity. Certified by ASTM F68 C10100.
Fluorocarbon dielectrics are usually only found in wire used in the aerospace industry, satellites and only the most expensive audiophile cabling. It has special electrical characteristics; very low dielectric absorption, high dielectric strength and exceptional heat resistance. When used in audio and power cables is reduces the perception of dynamic compression and it improves sonic low-level resolution and clarity.
Crystal clear transient detail.
KPIP v2™ Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade.
SPECIFICATIONS
|
Cable Type: VTX-Ag™️ Gauge: 06 Conductors: ArNi ® OFE Dielectric: fluorocarbon Connectors: STIS™️ v3 |
TAPc/Cmode Module: 20 elements | 2 modules KPIP v2 Processing: 4-days Standard Length: 1.00 meters Safety Assurance: |
