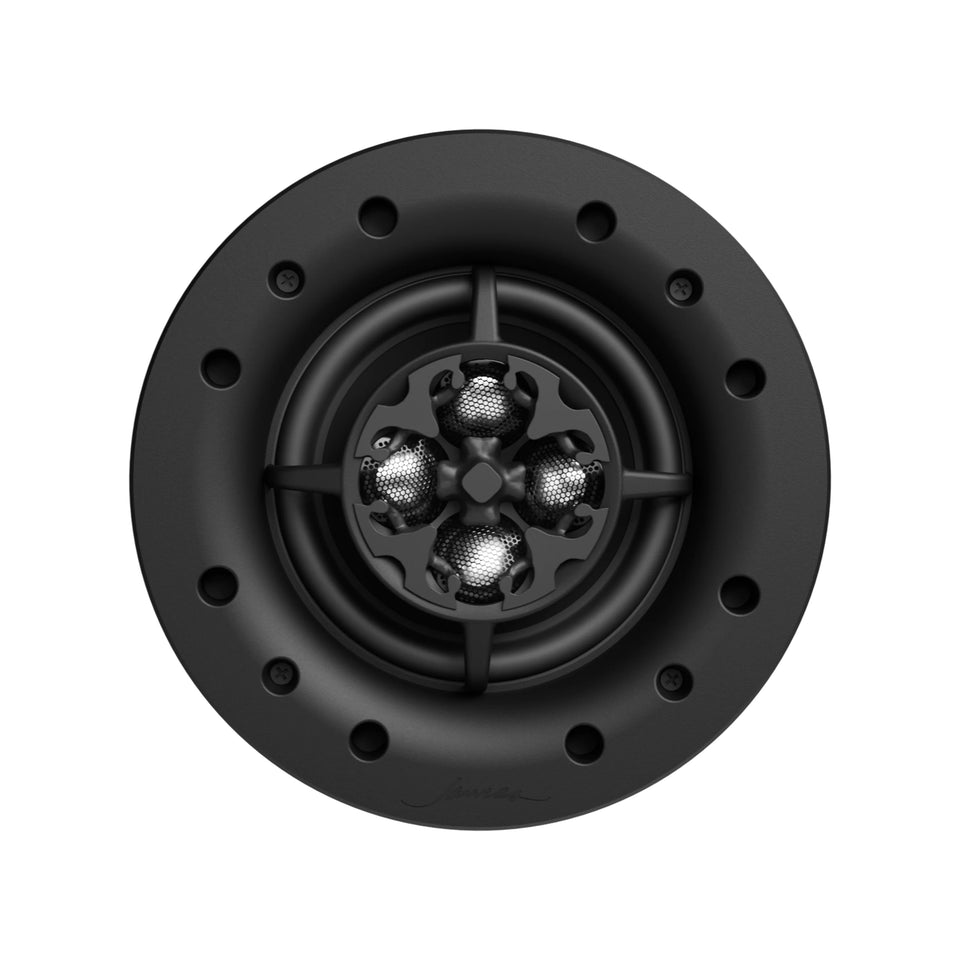

IP67 rated Visual Experience Series in-ceiling speaker featuring James Quadratech and Cymatic diffuser technology for ultimate performance for architectural applications. The VXQ68R can be ordered with a standard round Micro Trim grille, round Trimless grille, square Micro Trim grille, or square Trimless grille. These speakers can also be configured to include a shallow or deep enclosure to suit whatever the application demands.

Specifications:

SKU
VXQ68R

Speaker Tweeter
.75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

Speaker Woofer
6.5" (165mm) Aluminum cone, Santoprene surround

Frequency Response (+/- 3db)
40Hz - 20kHz

Power Handling (RMS)
5 watts minimum; 150 watts maximum

Sensitivity
90dB (2.83V/1m)

Dispersion
Quadratech Tweeter with Cymatic Diffuser

Cut-Out Dimensions (Diameter)
8.25" (209.55mm)

Mounting Depth
3.8" (96.52mm)
