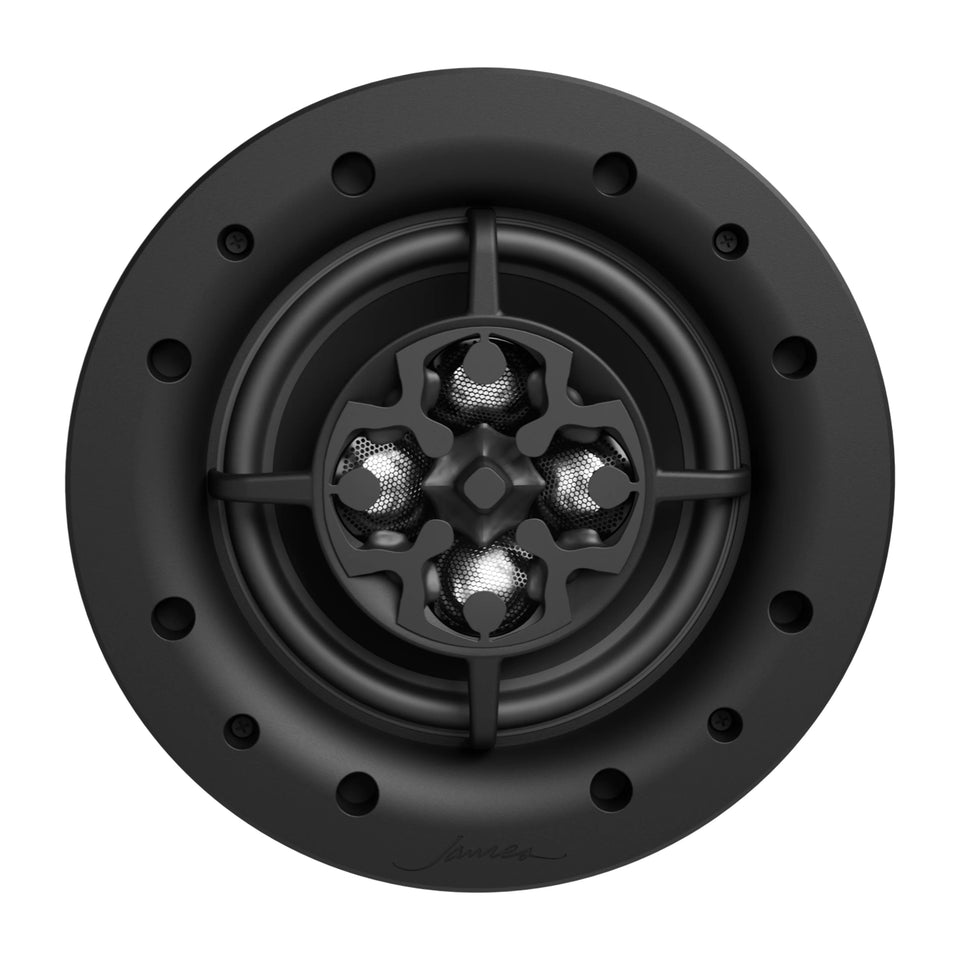

IP67 rated Visual Experience Series in-ceiling speaker featuring James Quadratech and Cymatic diffuser technology for ultimate performance for architectural applications. The VXQ88R can be ordered with a standard round Micro Trim grille, round Trimless grille, square Micro Trim grille, or square Trimless grille. These speakers can also be configured to include a shallow or deep enclosure to suit whatever the application demands.

Specifications:

SKU
VXQ88R

Speaker Tweeter
1.0" (25mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

Speaker Woofer
8" (203mm) Aluminum cone, Santoprene surround

Frequency Response (+/- 3db)
30Hz - 20kHz

Power Handling (RMS)
5 watts minimum; 175 watts maximum

Sensitivity
91dB (2.83V/1m)

Dispersion
Quadratech Tweeter with Cymatic Diffuser

Cut-Out Dimensions (Diameter)
10.125" (257.18mm)

Mounting Depth
3.78" (96.01mm)
