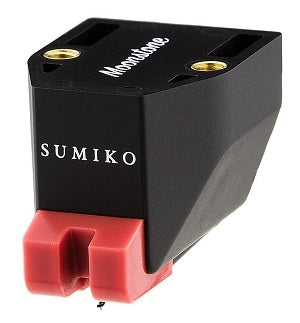

Sumiko Moonstone MM Cartridge

Moonstone

High performance MM Cartridge
0.3 x 0.7 Micron Elliptical Stylus (Red Tip Stylus)

The Moonstone is an affordable high-performance moving magnet cartridge that utilizes the powerful mechanically-generated electromotive forces of the moving magnet to help give your playback extra punch and convincing realism. Exceptionally well-balanced and dimensionally dense, the breathtaking dynamics of the Moonstone outperform many comparably priced moving coil cartridges without requiring the huge investment in preampfification.

Technical Specifications:-

Cartridge Type: Moving Magnet
Stylus: 0.3µM x 0.7µM Elliptical
Cantilever Material: 0.5mm aluminum
Wire Material: copper
Internal Impedance: 1,130Ω
Load Impedance: 47KΩ
Frequency Response: 12Hz - 33kHz
Output Voltage: 3mV @ 1kHz
Channel Separation: 30dB @ 1kHz
Channel Balance: 0.5dB @ 1kHz
Compliance: 12x10-6 cm/dyn @ 100hZ
Recommended Load Capacitance: 100pF - 200pF
Vertical Tracking Angle: 20°
Tracking Force: 1.8g - 2.2g Recommended Force: 2.0g
Cartridge Weight: 6.5g

Replacement Stylus Unit:
RS Moonstone
RS Rainier
RS Olympia
