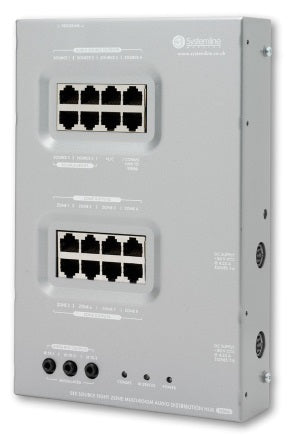

Systemline AM8 Multi-Source Hub

6 inputs 8 zonesThis is a 6 x 8 audio matrix switcher where multiple sources are connected exclusively over usingCAT-5/6 cable using balanced line.8 zone outputs are provided via RJ-45 sockets, which use CAT-5/6 cable to feed either active speakers or zone amplifiers located in their respective rooms. This cable delivers power and balanced audio to the zones together with a coms & IR bus.

Specification:
IR pass through is also supported via a series of jack sockets
Requires one PSM120 to power the first 6 zones and a second PSM120 is required to drive all 8 zones

Dimensions (WxDxH) 145 x 42.5 x 220 mmNote: Requires 2 x MIM3’s to utilise all 6 sources
