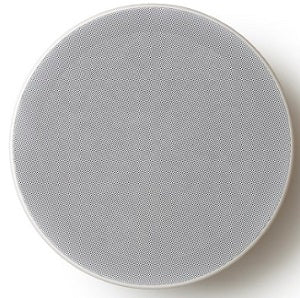

Terra TRAx80 Outdoor In-Ceiling Speakers

TrAx80

all-climate
high-quality sound
no maintenance
lifetime guarantee

The TrAx80 is among the latest in a long series of high performance Terra installed loudspeakers. It incorporates our most powerful satellite woofer, an 8-inch ACAD fluid cooled driver combined with a 1-inch co-axial, fluid cooled aluminum tweeter.

This high frequency driver is mounted using a tiltable/aimable socket assembly to optimize performance even if the system must be installed in a less than ideal location. The TrAx80 is designed for those who want the best in sound indoors or out with deeper bass and higher output than the TrAx60.

Technical Specifications:-

Drivers: 8" ACAD Bass/Mid
Tweeter: Coaxial 1" Aluminum
Temperature Range: -20˚C - 105˚C
Grill: Micro-Perf Aluminum/ Square or Round
Power Handling: 125 Watts
Frequency Range: 50Hz - 20kHz 3dB
Impedance: 8 Ohms
Sensitivity: 88dB (1 Watt @ 1 Meter)
Nominal Coverage Angle: 90 degrees conical
Coverage Angle (1 kHz to 6 kHz)\: 105 degrees
Rated Maximum SPL: Average: 109 dB Peak: 115 dB
Frame Dimensions: 10.75" Diameter (274mm) 5" Depth (127mm)
Cutout Dimensions: 9.5" Diameter (242mm)
Net Weight (Each): 7.1 lbs. / 3.2 kg
Waterproof Rating: *IP67 Meets or exceeds MIL-STD-810G standards
Please Note: *CA Speakers must be sealed under the flange for the waterproof rating.
