Crestron CNMSX-AV Audio Video Control Processor
|
|
CNMSX-AV is the cost-competitive option in Crestron's new generation of control systems. The CNMSX-AV is fully expandable, a perfect choice for many small to mid-sized control applications.
Ideal for: boardrooms, training centers, conference centers, videoconferencing, lighting control, environmental control, command and control centers, high tech homes.
Crestron's CNMSX-AV is a high performance, integrated control system with dynamic expansion capabilities. Performance, value, reliability and a link to future technology are what set MSX apart from other control systems.
|
|
CYP PUV-1550S-RX (PUV1550SRX) 100m HDBaseT™ Receiver
|
|
PUV-1550S-RX 100m HDBaseT™ Receiver & 4K Dual HDMI Scaler (4K, HDCP2.2, PoH, LAN, OAR)
The PUV-1550SRX Receiver supports video resolutions up to 4K UHD along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN and Optical Audio Return (OAR) over a single Cat5e/6/7 cable up to 100m. While the HDBaseT input is limited to a maximum of 4K @ 60Hz (4:2:0), this unit can automatically convert or scale the input to display 4K @ 60Hz (4:4:4) at the receiving end depending on the detected capability of the connected display panel. Conversely the user can downscale 4K UHD content to 1080p for simple integration of older displays. A useful troubleshooting feature of PUV-1550SRX is a 6G UHD HDMI Pattern Generator for testing locally connected displays. In addition to the full 5Play™ convergence, digital OAR (Optical Audio Return) provides users the ability to transmit Optical Audio (48kHz) to the HDBaseT TX. The RX also features a analogue audio output providing users with total audio flexibility. The PUV-1550SRX also has on board EDID Management which is useful when troubleshooting connected displays.
|
|

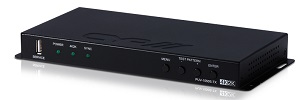

CYP PUV-1550S-TX (PUV1550STX) 100m HDBaseT™ Transmitter
|
|
PUV-1550S-TX 100m HDBaseT™ Transmitter & 4K Scaler (4K, HDCP2.2, PoH, LAN, OAR)
The PUV-1550STX HDBaseT Transmitter/Scaler enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m. As well as a HDMI input, this unit features a local HDMI output supporting video signals up to 4K @ 60Hz (4:4:4, 8-bit) and 4K @ 24Hz HDR. Full 4K UHD content for transmission over the HDBaseT output signal can be converted to 4K @ 60Hz (4:2:0, 8-bit) or 1080p @ 60Hz, in order to fit within HDBaseT bandwidth limitations (10.2Mbps). Simple 4K UHD test patterns can also be outputted. 1080p signals can also be upscaled to 4K UHD and transmitted to the receiver. Control of remote devices is possible via bi-directional RS-232, IR ports as well as a LAN connection. A analogue audio output provides users with the ability to receive Optical Audio transmitted from the PUV-1550SRX or de-embed audio from the HDMI source. The PUV-1550SRX also has on board EDID Management which is useful when troubleshooting connected displays.
|
|
CYP OR-44U-4K22 (OR44U4K22) 4 x 4 HDMI Matrix Switcher
|
|
OR-44U-4K22 4 x 4 HDMI Matrix Switcher with Optical Audio Output & USB Power (4K, HDCP2.2, HDMI2.0)
This 4K UHD 4 by 4 Matrix provides the ability to connect up to four
4K UHD HDMI sources to up to four 4K UHD HDMI displays and freely
switch between them. This unit comes with full support for 18Gbps
(6G) and resolutions up to and including 4K @ 60Hz (4:4:4, 8-bit) as
well as support for 48-bit Deep Color, HDR (High Dynamic Range), HD
audio and other features defined by the HDMI 2.0 specification. With
a comprehensive EDID management feature that includes the ability
to select between built in default EDID, EDID copied from connected
sink devices, as well as a configurable EDID, this matrix can solve
many inter-connectivity problems. This unit also features four USB ports
which supply up to 5V/1A power for use with connected optical fiber
or AOC fiber cable extenders or CAT5 balun extenders.
The built in OSD allows the user to display text on screen.
Each output is capable of displaying up to 2 lines of text on top of the video source
in the color of your choice. The unit can be controlled using the
OSD as well as RS-232, telnet, WebGUI, and IR remote control.
|
|
CYP OR-44-4K22 (OR444K22) 4 x 4 HDMI Matrix Switcher
|
|
OR-44-4K22 4 x 4 HDMI Matrix Switcher (4K, HDCP2.2, HDMI2.0)
This 4x4 HDMI Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to any of the four connected HDMI display. This matrix switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The unit supports all the latest features of the HDMI2.0 specification such as 4K UHD resolutions (4K2K @ 60Hz - YUV4:4:4),HDR (High Dynamic Range), 'Deep Color', and High Definition audio. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.
|
|
CYP CR-TG1 (CRTG1) Surface Mount 8 Button Keypad Control System
|
|
CR-TG1 Surface Mount Keypad Control System
The CR-TG1 Control Trigger Keypad is designed to be a simple and effective alternative for more complex control systems. This keypad features a set of 8 buttons which directly activate 8 trigger outputs which can be attached to any compatible control system.
The keypad’s connection cable allows the installer to extend system control to locations that are more convenient for user, such as a Meeting Room Tables, Lecterns, Podiums, etc. The CR-TG1's understated appearance makes this keypad an elegant and decorative addition to any professional AV installation.
|
|
CYP CR-KP2 (CRKP2) 9 Button Wall-mount keypad Control System
|
|
CR-KP2 9 Button Wall-Mount Keypad Control System
The CR-KP2 is a wall-mount keypad control system and is ideally suited for any AV install environment such as conference/meeting rooms, classrooms, and home cinemas allowing commands for multiple devices such as the EL-5500 to be programmed into one easy to use device. The CR-KP2 supports PoE (Power over Ethernet) or a DC power supply and allows full control of any devices that are on the same local network and support IP Telnet control, additionally the CR-KP2 also incorporates a contact-closure connection allowing control of third party devices such as a powered projector screens. The CR-KP2 includes a scheduling function allowing macros to be implemented at a pre-selected time and date, for example turning all the equipment off at the end of the day.
|
|

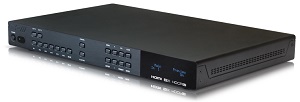

CYP OR-HD62CD-4K22 (ORHD62CD4K22) 6x2 HDMI Matrix Switch
|
|
OR-HD62CD-4K22 6x2 HDMI Matrix Switch with Audio De-Embedding (4K resolution support & HDCP2.2)
The OR-HD62CD-4K22 is an advanced 4K UHD HDMI matrix switcher designed for both commercial and residential applications.
The 6 x 2 HDMI matrix switch enables 4K UHD HDCP 2.2 HDMI signals to be routed from any of the six HDMI inputs to either of the two independent HDMI outputs. Additionally a cutting edge picture in picture (PIP) preview mode can be selected where the unselected sources (excluding 3D and 4K UHD) are displayed in a row of 5 small windows overlaid on top of the primary selected source. In preview mode, both HDMI outputs show identical feeds. Further features include fast switching technology, on-board EDID management tool (via on screen display) and optical audio de-embedding for added flexibility of installation.
|
|
CYP OR-HD44S 4 x 4 HDMI Matrix Switcher
|
|
OR-HD44S 4 x 4 HDMI Matrix Switcher
The OR-HD44S Matrix Switcher connects four HDMI sources to four displays allowing any source to be independently displayed on any screen. This matrix switcher can be controlled via the supplied remote control, RS-232, or by using the input switching buttons on the front of the device. This device is compatible to v1.3 HDMI specifications, supporting ‘Deep Colour’, High Definition Audio, and 3D signal compatibility.
|
|

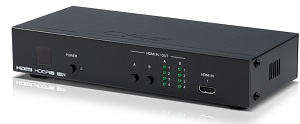

CYP OR-42-4K22 (OR424K22) 4 x 2 HDMI Matrix Switcher
|
|
OR-42-4K22 4 x 2 HDMI Matrix Switcher (4K, HDCP2.2, HDMI2.0)
This 4x2 HDMI Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to either of the two connected HDMI displays. This matrix switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The unit supports all the latest features of the HDMI2.0 specification such as 4K UHD resolutions (4K2K @ 60Hz - YUV4:4:4),HDR (High Dynamic Range), 'Deep Color', and High Definition audio. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.
|
|
