CYP DS-MSC14-4K (DSMSC144K) 1 to 4 multi-screen controller
|
|
DS-MSC14-4K 1 to 4 multi-screen controller with 4K input support
The DS-MSC14-4K enables a 4K video wall to be created from any third party screens, the HDMI source can be displayed as a single image on each screen or 1 image across all screens. A single unit will create a 2x2 video wall. Multiple units can be combined with an HDMI distribution amp to create larger video wall configurations. Control is via RS-232, Telnet IP and our downloadable application which will allow full control of the DS-MSC14-4K from adjusting the bezel correction to pre-set video wall layouts.
|
|
CYP DS-MSC14 (DSMSC14) Cascadable 1 to 4 multi-screen controller
|
|
DS-MSC14 Cascadable 1 to 4 multi-screen controller
The 1 by 4 HDMI TV Wall controller allows an HDMI input source to be displayed, in full screen or single mode, on up to 4 HDMI displays (TV or monitor). Multiple units can be cascaded to extend the HDMI signal up to as many displays as needed. The unit features bezel correction function. A simple control application enables users to control single or multiple units. The device supports video timings up to WUXGA @ 60RB and 1080p @ 60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID. Control can be achieved through software application (Compatible with Microsoft Windows XP & 7 Only), Telnet and RS-232.
|
|

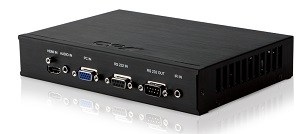

CYP DS-MSC (DSMSC) Digital Signage Multi-Screen Controller
|
|
DS-MSC Digital Signage Multi-Screen Controller
The DS-MSC is designed to manage audio and video signals to emulate a video wall when using third-party screens. This controller will control the digital signage content for each screen on a video wall system using up to 25 screens. One controller is required per screen. If the user has only one HDMI or VGA source, then an appropriate Distribution Amplifier (Splitter) will be required to split the source signal to each of the Multi-Screen Controllers feeding the screens.
|
|
CYP CR-KP1 (CRKP1) Wall-mount keypad Control System
|
|
CR-KP1 Wall-mount keypad Control System
The CR-KP1 is a wall-mount keypad control system and is ideally suited for any AV install environment such as conference/meeting rooms, classrooms, and home cinemas allowing commands for multiple devices such as the EL-5500 to be programmed into one easy to use device. The CR-KP1 supports PoE (Power over Ethernet) or a DC power supply and allows full control of any devices that are on the same local network and support IP Telnet control, additionally the CR-KP1 also incorporates two contact-closure connections allowing control of third party devices such as a powered projector screens. The CR-KP1 includes a scheduling function allowing macros to be implemented at a pre-selected time and date, for example turning all the equipment off at the end of the day.
|
|

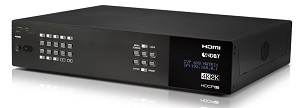

CYP PUV-662PL-4K22 (PUV662PL4K22) 6 x 8 HDMI HDBaseT™ LITE Matrix
|
|
PUV-662PL-4K22 6 x 8 HDMI HDBaseT™ LITE Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, OAR, 60m)
The PUV-662PL-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K @ 60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 6 HDMI sources to 6 HDBaseT Lite outputs and 2 independent HDMI2.0 outputs. The HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 60m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.
The PUV-662PL-4K22 matrix incorporates an independent audio matrix with 8 audio outputs and 4 audio inputs. These outputs and inputs can be used for de-embedding HDMI audio to feed the audio outputs and embedding this audio to the HDBaseT and HDMI outputs. In addition, volume, mute, treble, bass and audio lip-sink correction control are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1230PL-RX receiver to be routed back to the audio matrix.
|
|

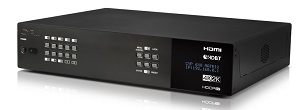

CYP PUV-662-4K22 (PUV6624K22) 6 x 8 HDMI HDBaseT™ Matrix
|
|
PUV-662-4K22 6 x 8 HDMI HDBaseT™ Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, LAN, OAR, 100m)
The PUV-662-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K @ 60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 6 HDMI sources to 6 HDBaseT outputs and 2 independent HDMI2.0 outputs. The HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 100m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.
The PUV-662-4K22 matrix incorporates an independent audio matrix with 8 audio outputs and 4 audio inputs. These outputs and inputs can be used for de-embedding HDMI audio to feed the audio outputs and embedding this audio to the HDBaseT and HDMI outputs. In addition, volume, mute, treble, bass and audio lip-sink correction control are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1530RX receiver to be routed back to the audio matrix.
|
|

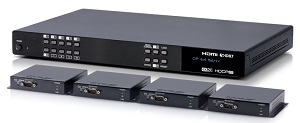

CYP PUV-44XPL-4K22-KIT (PUV44XPL4K22KIT) 4x4 HDMI HDBaseT™ LITE Matrix
|
|
PUV-44XPL-4K22-KIT 4 x 4 HDMI HDBaseT™ LITE Matrix with 2x Independent HDMI outputs & Audio De-embedding (4K, HDCP2.2, PoH, 60m) inc. 4x PUV-1210PL-RX Receivers
The PUV-44XPL-4K22-KIT is a HDMI/HDBaseT LITE Matrix which supports the transmission of video (resolutions up to 4K2K @ 60Hz, HDCP 2.2) and multi-channel digital audio from 4 HDMI sources to 4 HDBaseT LITE outputs and 2 independent HDMI outputs. HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 60m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.
|
|
CYP PUV-442-4K22 (PUV4424K22) 4 x 6 HDMI HDBaseT™ Matrix
|
|
PUV-442-4K22 4 x 6 HDMI HDBaseT™ Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, LAN, OAR, 100m)
The PUV-442-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K @ 60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 4 HDMI sources to 4 HDBaseT Lite outputs and 2 independent HDMI2.0 outputs. The HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 100m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.
The PUV-442-4K22 matrix incorporates an independent audio matrix with 6 audio outputs and 4 audio inputs. These outputs and inputs can be used for de-embedding HDMI audio to feed the audio outputs and embedding this audio to the HDBaseT and HDMI outputs. In addition, volume, mute, treble, bass and audio lip-sink correction control are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1530PL-RX receiver to be routed back to the audio matrix.
|
|

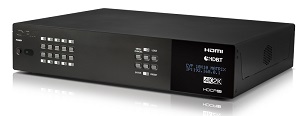

CYP PUV-1082PL-4K22 (PUV1082PL4K22) 10 x 10 HDMI HDBaseT™ LITE Matrix
|
|
PUV-1082PL-4K22 10 x 10 HDMI HDBaseT™ LITE Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, OAR, 60m)
The PUV-1082PL-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K @ 60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 10 HDMI sources to 8 HDBaseT outputs and 2 independent HDMI2.0 outputs. HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 60m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.
|
|

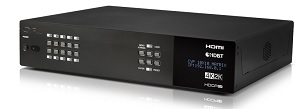

CYP PUV-1082-4K22( PUV10824K22) HDMI/HDBaseT Matrix
|
|
PUV-1082-4K22 10 x 10 HDMI HDBaseT™ Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, LAN, OAR, 100m)
The PUV-1082-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K @ 60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 10 HDMI sources to 8 HDBaseT outputs and 2 independent HDMI2.0 outputs. HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 100m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.
|
|
