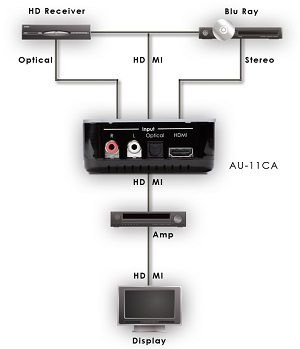

The AU-11CA Audio Embedder lets you insert an external audio signal into any HDMI source. The device allows you to insert analogue or digital stereo and multi-channel digital surround sound signals (via Optical) to give users the capability to overcome audio issues within complex HDMI installation. The AU-11CA also repeats the HDMI signal to allow an extended total HDMI cable range.
Specification:-
Compliant with HDMI v1.3 , HDCP 1.2 and DVI 1.0
•Supports Optical Sample Rate up to 96 kHz
•Supports LPCM Stereo, DTS and Dolby Digital via Optical input
•Supports up to 24bit resolution digital audio
•Supports resolutions of 1080P up to cable lengths of 10m either side of the device
•Supports HDMI Sample Rates up to 192 kHz
•Supports 3D signals

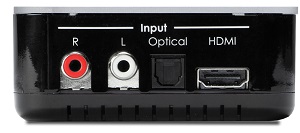

Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
2x RCA [1x Analogue Stereo (L/R)]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
PSU: 5V/1.2A
Dimensions 85mm [W] x 85mm [D] x 35mm [H]
Net Weight 260g
Gross Weight 440g
